Final Drive

WARNING: This page is about a different variant/trim than selected.

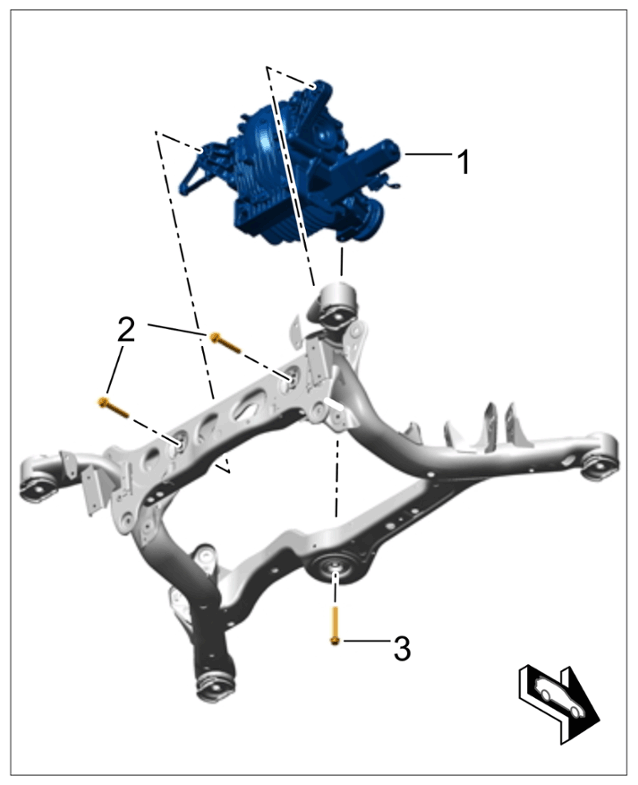

Fig 1: Rear Final Drive Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear final drive

1	Rear final drive
2	Rear final drive to rear axle carrier (rear screws) > Tightening - torque 95 Nm (70 ftlb.)
3	Rear final drive to rear axle carrier (bottom screw) > Initial - tightening 40 Nm (30 ftlb.) > Final tightening + 90 °

Servo motor for rear-differential lock > Tightening - torque 13 Nm (9.5 ftlb.)
