ATF Lines
WARNING: This page is about a different variant/trim than selected.
Connection piece for ATF supply and return lines to transmission > Tightening - torque 20 Nm (15 ftlb.)
ATF lines
ATF lines

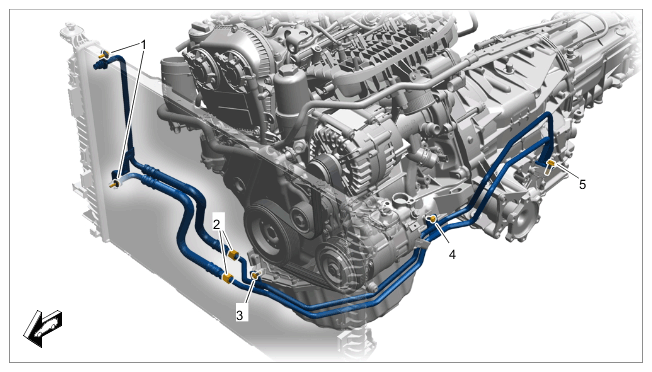

| 1 | Screws securing ATF lines to radiator > Tightening - torque 5 Nm (3.5 ftlb.) |
| 2 | Union nuts securing connection point for ATF lines> Tightening - torque 29 Nm (21 ftlb.) |
| 3 | Screw > Tightening - torque 8 Nm (6.5 ftlb.) |
| 4 | Screw > Tightening - torque 8 Nm (6.5 ftlb.) |
| 5 | Screw |
Connection piece for ATF supply and return lines to transmission > Tightening - torque 20 Nm (15 ftlb.)
ATF lines
ATF lines

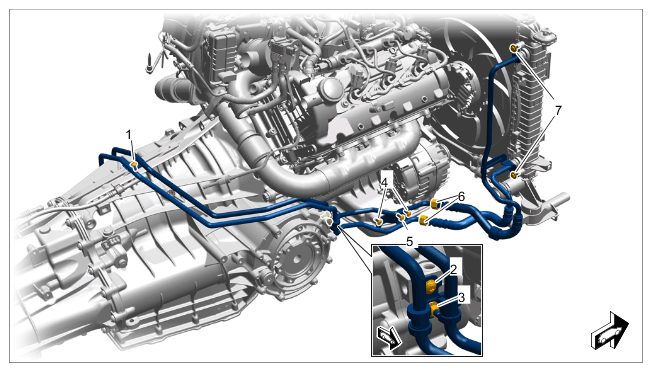

| 1 | Screw > Tightening - torque 8 Nm (6 ftlb.) |
| 2 | Screw securing holder to transmission > Tightening - torque 8 Nm (6 ftlb.) |
| 3 | Nut> Tightening - torque 8 Nm (6 ftlb.) |
| 4 | Screws securing holder to oil pan > Tightening - torque 8 Nm (6 ftlb.) |
| 5 | Screw > Tightening - torque 8 Nm (6 ftlb.) |
| 6 | Union nuts securing connection point for ATF lines> Tightening - torque 29 Nm (21 ftlb.) |
| 7 | Screws securing ATF lines to radiator > Tightening - torque 5 Nm (3.5 ftlb.) |
