Adjusting Rear-Axle Toe
WARNING: This page is about a different variant/trim than selected.
- Turn the toe eccentric adjuster -1-
as required after loosening the lock nut -2-
.

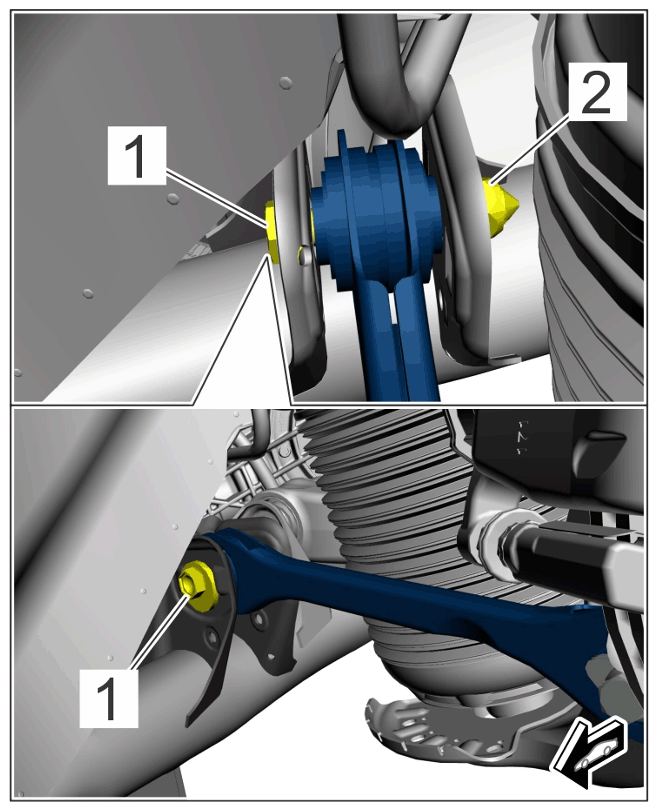

Rear-axle toe eccentric adjuster
- 1.1 Then, tighten lock nut -2-
using >
T40183 - interchangeable head
on the toe eccentric adjuster -1-
(the ratchet head of the torque wrench must be inserted into >
T40183 - interchangeable head
to do this).
> Tightening - torque 95 Nm (70 ftlb.)
- 1.1 Then, tighten lock nut -2-
using >
T40183 - interchangeable head
on the toe eccentric adjuster -1-
(the ratchet head of the torque wrench must be inserted into >
T40183 - interchangeable head
to do this).
