Preparing The Vehicle

WARNING: This page is about a different variant/trim than selected.
  1. Drive the vehicle tension-free onto the wheel-alignment stand, ensuring that axle components are not under tension by moving the vehicle forward and backward several times if necessary.
  2. Pull off hub caps -1-  on all four wheels using > 9229/1 - puller hook  .

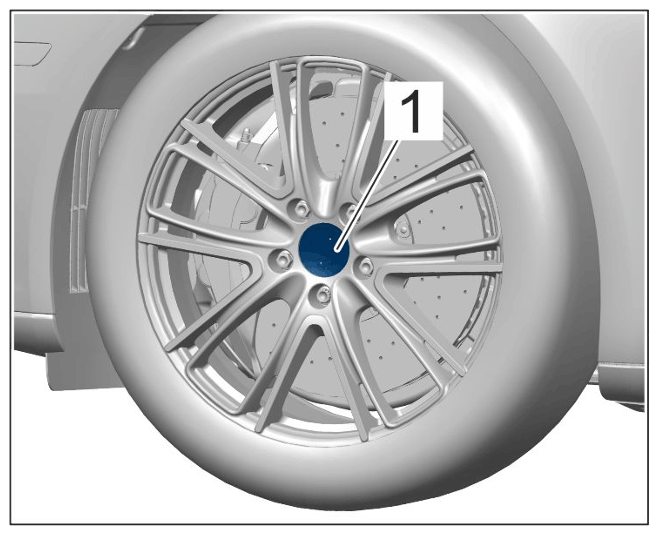

    G15154101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hub cap

    Information

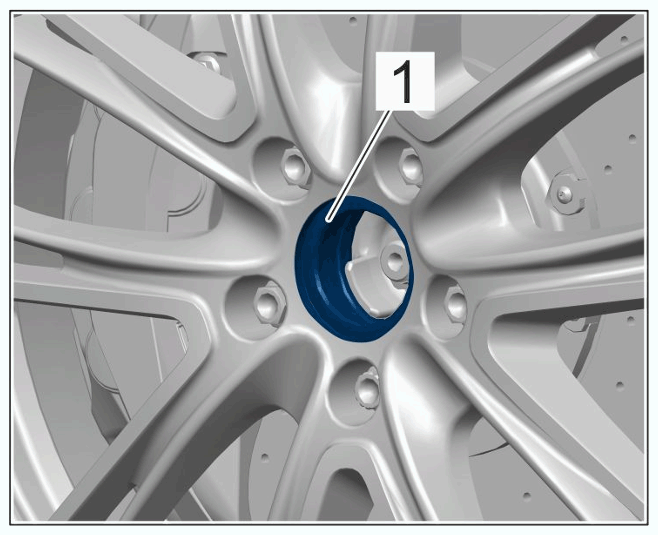

    Contact surfaces of the wheel hub bore -1-  must be clean and smooth. Even minor contamination (e.g. paint residues) in the wheel hub bore can result in incorrect measurements.

    G15154102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel hub bore

  3. > VAS 6918 - Quick clamping device  must be clamped in the wheel hub bore on all four wheels.
  4. Fit measured-value pickups to the > VAS 6918 - quick-clamping unit  on all four wheels.
