Removing Control Unit For Tyre Pressure Monitoring (TPM)

The Tyre Pressure Monitoring (TPM) control unit is located on the rear axle on the left anti-roll-bar mount.

The antenna is integrated in the Tyre Pressure Monitoring (TPM) control unit. For more information, see

> 4X00IN - GENERAL INFORMATION ON THE TYRE PRESSURE MONITORING SYSTEM (TPM)

1. Disconnect control unit for Tyre Pressure Monitoring (TPM).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

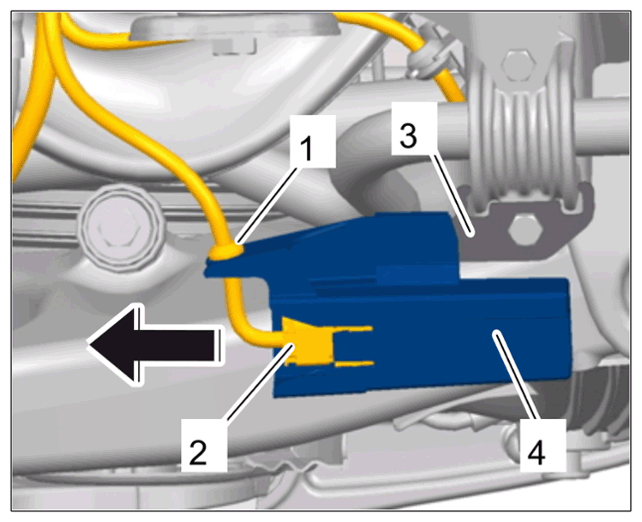

   Mounting for control unit for Tyre Pressure Monitoring (TPM)

   1. 1.1 Disconnect electric line at the holder -1-  .
   2. 1.2 Release and unplug electric plug connection -2-  .
   3. 1.3 Unclip Tyre Pressure Monitoring (TPM) control unit with holder -4-  on the back of the holder -3-  and disconnect it -Arrow-  .

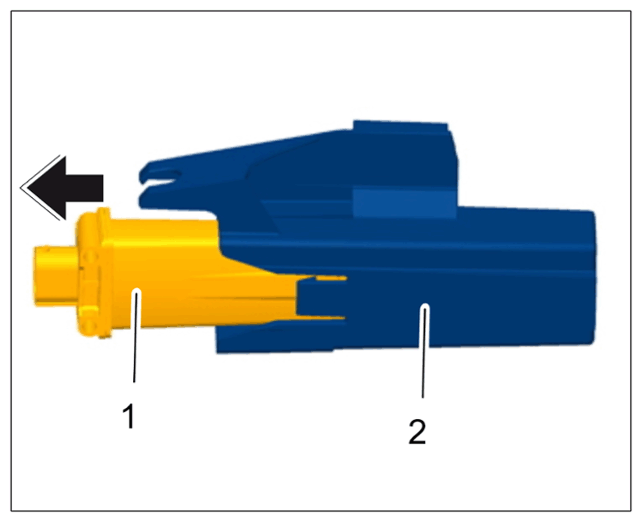

2. Remove Tyre Pressure Monitoring (TPM) control unit -1-  from the holder -2-  (-Arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tyre Pressure Monitoring (TPM) control unit with holder.
