Installing Wheel

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

NOTIFICATION

Removing/fitting wheels

Risk of damage to (ceramic) brake discs
→ Use two assembly pins when removing and fitting the wheel.

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Information

For vehicles with Tyre Pressure Monitoring (TPM):

Every new set of wheels or wheel change must be communicated to the control unit. Even if the new wheels have the same specifications as the old ones.
To do this, select TPM, Settings, Tyre type and Tyre size in the main menu on the instrument cluster and confirm your selection. The control unit stores these values while the vehicle is driving (at more than 25 km/h (16 mph)). The current tyre pressure is not available during this time.
For information on teaching the TPM system, see
> 4X00IN - GENERAL INFORMATION ON THE TYRE PRESSURE MONITORING SYSTEM (TPM)

Information

The use of power tools (impact bolter) for loosening and securing the wheel bolts is not permitted.

Information

The wheel bolts/security wheel bolts (thread and all surfaces) must not be greased!

Clean wheel contact surfaces on the wheel hub and brake disc.
Grease the wheel centering surfaces on the wheel hub -Arrows- with a very thin coat of Optimoly TA (aluminium paste). The wheel contact surface on the brake disc -1- and on the wheel itself must not be greased!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

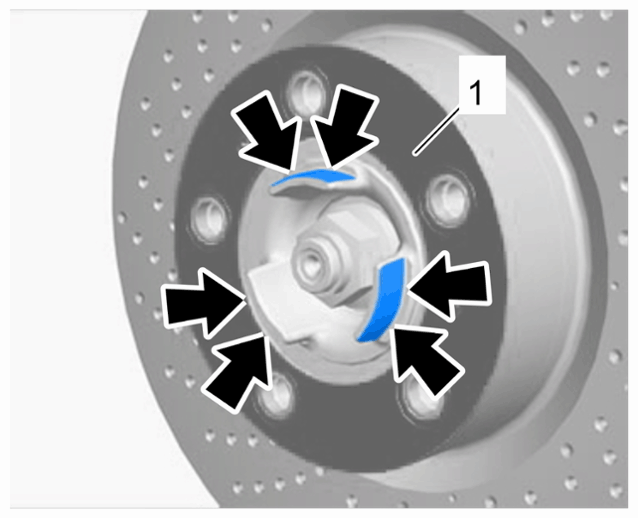

Wheel centering surface

Information
- For vehicles with PCCB, use two assembly aids (threaded bolts for fitting wheel) to prevent contact between the wheel and brake disc.
- The assembly aids can be ordered from the Porsche Spare Parts Information PET.
For vehicles with PCCB, use brake system assembly aids -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

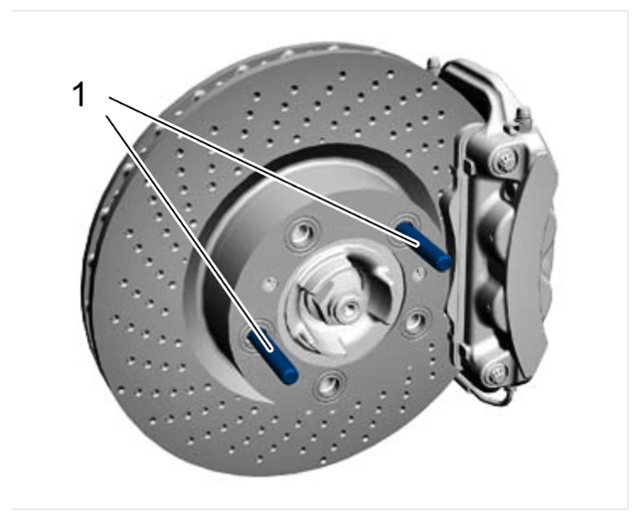

Assembly aids (threaded bolts for fitting wheel)
Fit wheel -1- .
If necessary, get help from a second person or use > VAS 6266A - wheel mounting trolleys .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

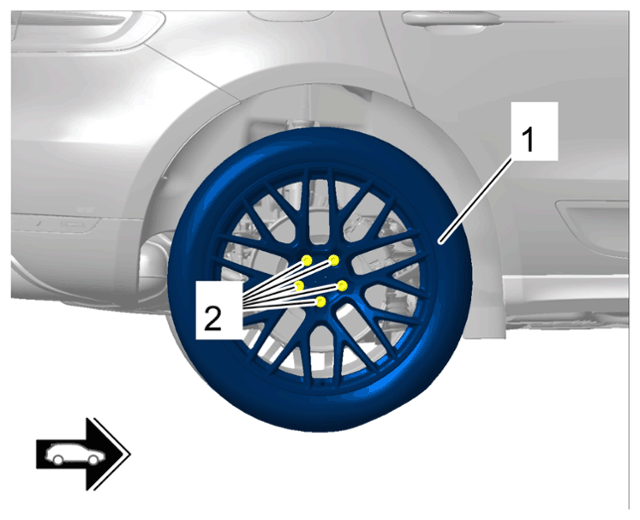

Wheel mounting
1. 4.1 Fit wheel -1- on wheel hub and screw in wheel bolts -2- (but do not tighten yet).
2. 4.2 Lower the vehicle.
3. 4.3 Tighten wheel bolts -2- .
  > Tightening - torque 160 Nm (118 ftlb.)
If necessary, update or enter data for the TPM system in the instrument cluster, main menu TPM, Settings, Tyre type and Tyre size .
