Radiator/Electric Fan

WARNING: This page is about a different variant/trim than selected.

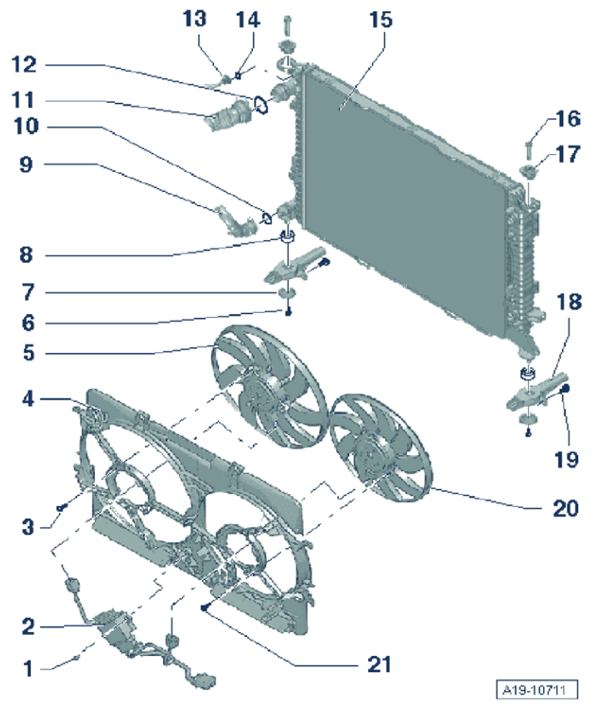

Fig 1: Radiator And Electric Fan Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radiator/electric fan

1	Screw > Tightening - torque 2.5 Nm (1.75 ftlb.)
2	Control unit for electric fan
3	Screw > Tightening - torque 5 Nm (3.5 ftlb.)
4	Fan frame
5	Electric fan
6	Screw > Tightening - torque 3.5 Nm (2.5 ftlb.)
7	Support
8	Rubber mounting
9	Coolant hose
10	O-ring/replace, coat with coolant
11	Coolant hose
12	O-ring/replace, coat with coolant
13	Coolant hose
14	O-ring/replace, coat with coolant
15	Radiator
16	Retaining pin
17	Rubber buffer
18	Radiator bracket
19	Screw > Tightening - torque 5.5 Nm (4 ftlb.)
20	Electric fan not for 400 W fan control
21	Screw > Tightening - torque 5 Nm (3.5 ftlb.)
