Engine Coolant Pipes

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screws securing left coolant pipe (engine) to intake-air distributor	Item 6	Tightening torque	6 Nm (4.5 ftlb.)

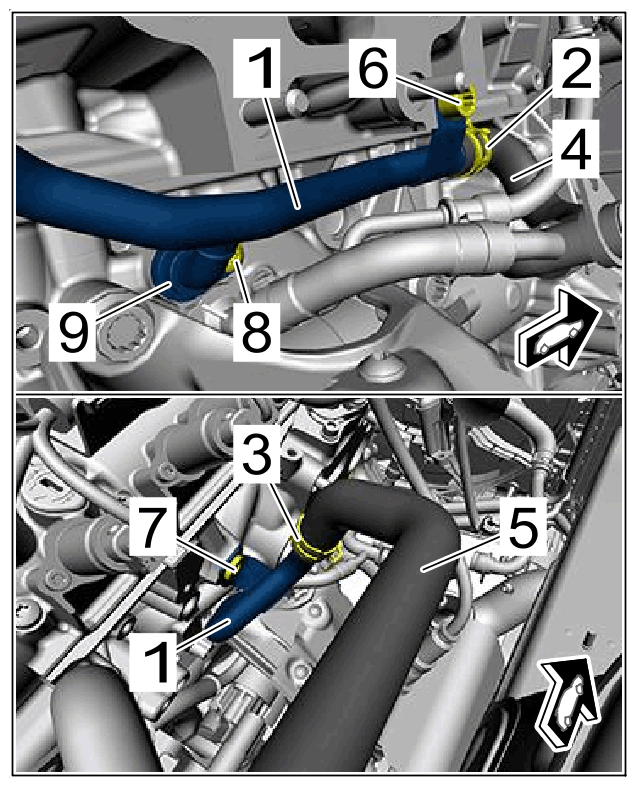

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Left coolant pipe (engine)
Screw for right coolant pipe (engine) adaptor	Item 8	Tightening torque	9 Nm (6.5 ftlb.)

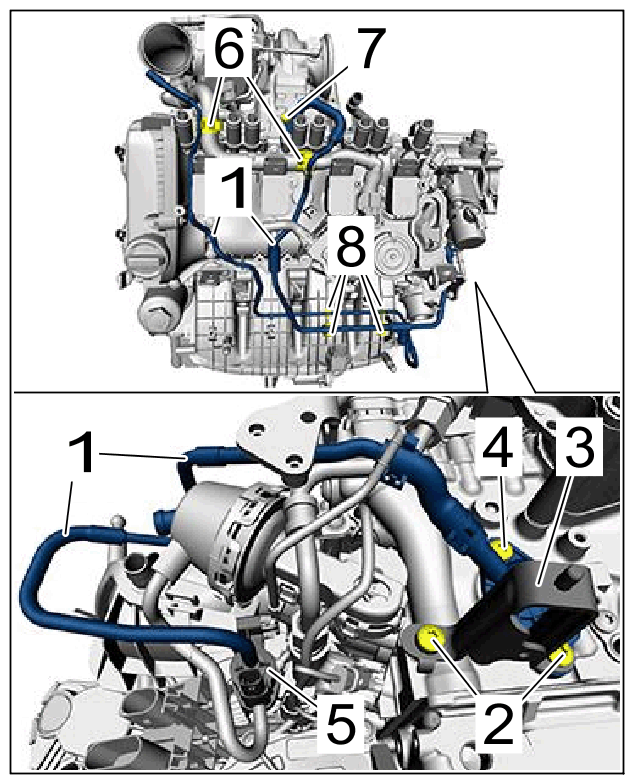

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right coolant pipe (engine)
Screw securing right coolant pipe (engine) to top of cylinder head	Item 7	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right coolant pipe (engine)
Screw securing right coolant pipe (engine) to bottom of cylinder head	Item 6	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right coolant pipe (engine)
Screw for rear coolant pipe (engine)	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

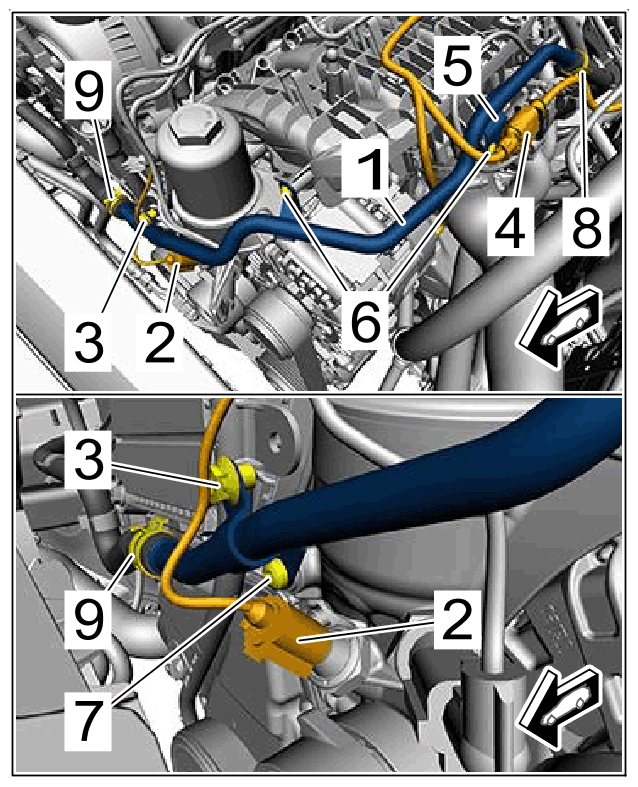

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant pipe to cylinder head
Screw for coolant line flange	Item 4	Tightening torque	9 Nm (6.5 ftlb.)

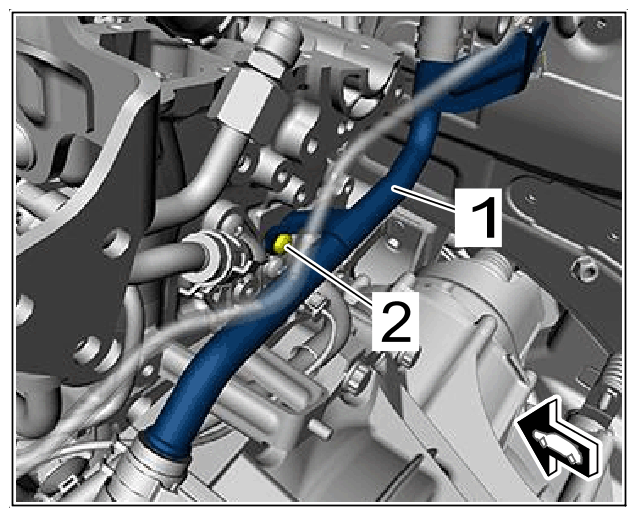

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Vacuum lines
Screws for holder	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Vacuum lines
Screw for coolant line flange	Item 7	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Vacuum lines
