Coolant Lines

WARNING: This page is about a different variant/trim than selected.

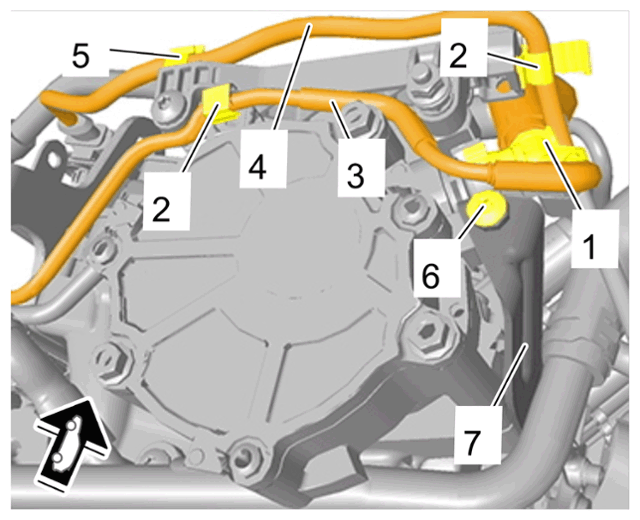

Fig 1: Vacuum Pump Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum pump

6 Screw > Tightening - torque 9 Nm (6.5 ftlb.)

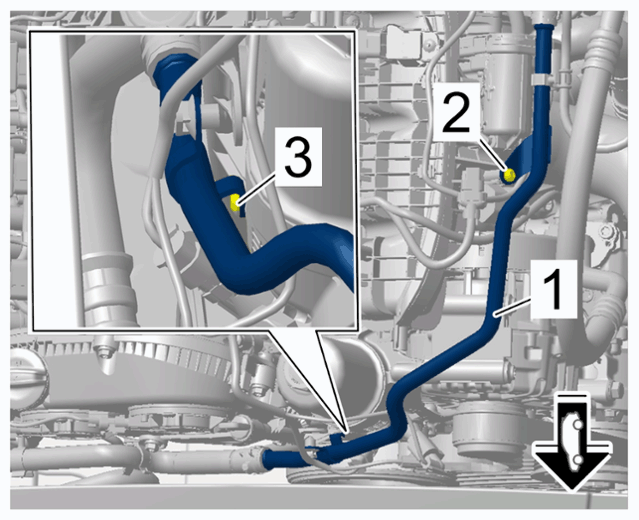

Fig 2: Coolant Lines Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line

1	Coolant line
2	Screw > Tightening - torque 9 Nm (6.5 ftlb.)

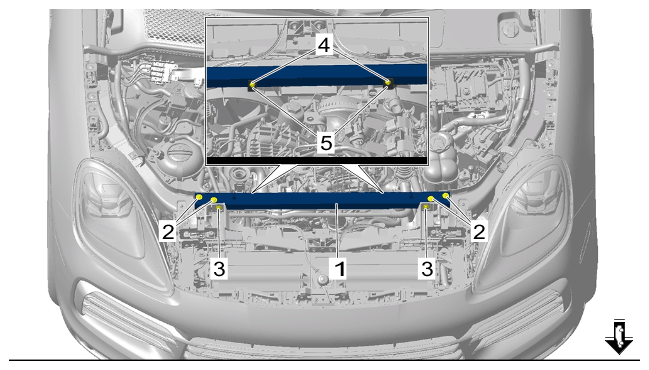

Fig 3: Intermediate Piece Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intermediate piece

1	Intermediate piece
4	Screws on coolant pipe holder > Tightening - torque 8 Nm (6 ftlb.)
5	Coolant pipe holder
