Oil Pan/Oil Pump

WARNING: This page is about a different variant/trim than selected.

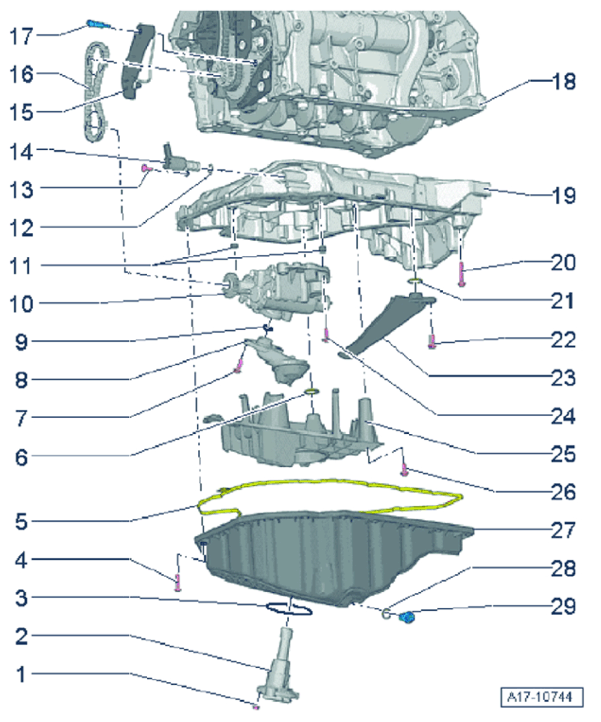

Fig 1: Oil Pan And Oil Pump Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pan/oil pump

1	Nut Tightening torque 9 Nm (6.5 ftlb.)
2	Oil level sensor and oil temperature sensor
3	Seal/replace
4	Screw/replace, observe specified tightening sequence Initial tightening 8 Nm (6 ftlb.) Final tightening + 90°
5	Oil sump gasket
6	O-ring/replace, coat with oil
7	Screw/replace Initial tightening 4 Nm (3 ftlb.) Final tightening + 45°
8	Intake pipe
9	O-ring/replace, coat with oil
10	Oil pump
11	Dowel sleeve
12	O-ring/replace, coat with oil
13	Screw/replace Initial tightening 4 Nm (3 ftlb.) Final tightening + 90°
14	Pressure-regulating valve
15	Chain tensioner
16	Oil pump drive chain
17	Screw Tightening torque 9 Nm (6.5 ftlb.)
18	Cylinder block
19	Upper part of oil pan
20	Screw/replace, observe specified tightening sequence Tightening torque 8 Nm (6 ftlb.)
21	O-ring/replace, coat with oil
22	Screw/replace Initial tightening 4 Nm (3 ftlb.) Final tightening + 45°
23	Oil return pipe
24	Screw/replace Initial tightening 8 Nm (6 ftlb.) Final tightening + 90°
25	Oil plate/replace
26	Screw/replace Initial tightening 4 Nm (3 ftlb.) Final tightening + 45°
27	Lower part of oil pan
28	O-ring/coat with engine oil/not available as an individual component
29	Stoppers/plastic oil pans/tighten fully
29	Oil drain plug/sheetmetal oil pans Tightening torque 30 Nm (22 ftlb.)

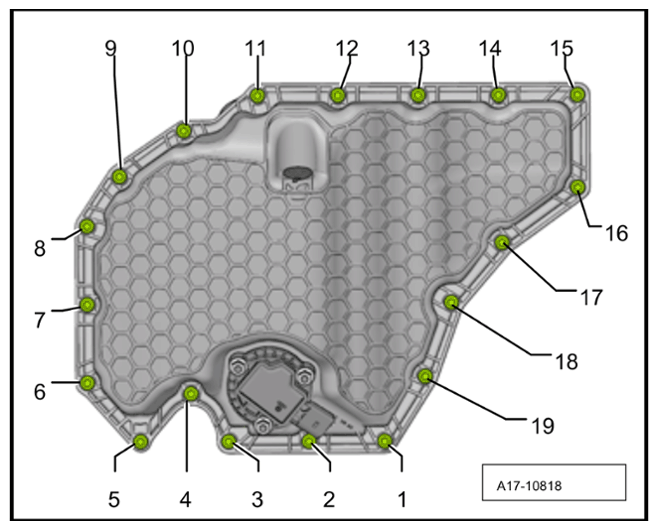

Fig 2: Oil Pan Screws Tightening Sequence (Lower Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for lower part of oil pan

1...19	Tightening torque 8 Nm (6 ftlb.)
1...19	Final tightening + 90°

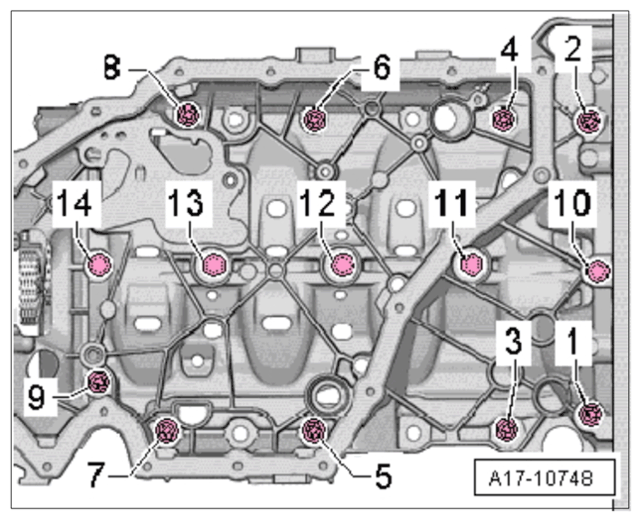

Fig 3: Oil Pan Screws Tightening Sequence (Upper Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for upper part of oil pan
