Oil Cooler
WARNING: This page is about a different variant/trim than selected.

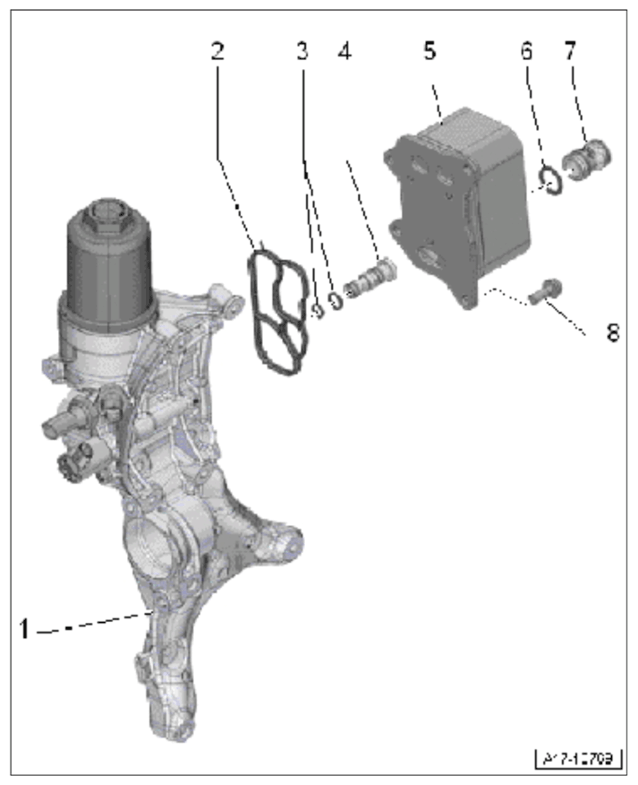

Oil cooler
| 1 | Auxiliary unit holder |
| 2 | Seal/replace |
| 3 | O-rings/replace, coat with oil |
| 4 | Mechanical control valve/replace |
| 5 | Oil cooler |
| 6 | Sealing ring/replace, coat with coolant |
| 7 | Joining socket |
| 8 | Screw/replace > Initial - tightening 8 Nm (6 ftlb.) > Final tightening + 45° |
