Valve Timing Control Values
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

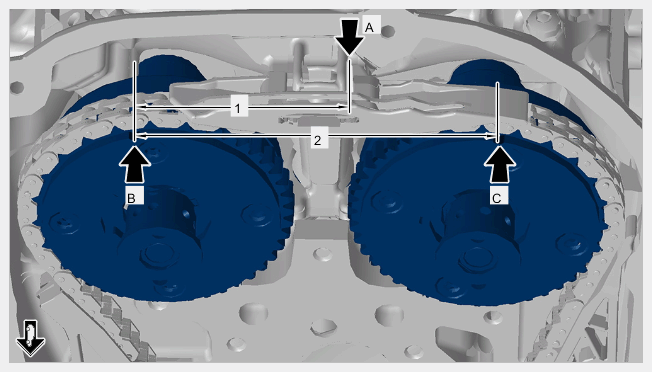

Camshaft timing
| 1 |
control value (minimum) 74 mm control value (maximum) 77 mm |
| 2 |
control value (minimum) 124 mm control value (maximum) 127 mm |
| A |
Measuring point on cylinder head |
| B |
Exhaust camshaft marking |
| C |
Intake camshaft marking |
