Belt Drive
WARNING: This page is about a different variant/trim than selected.

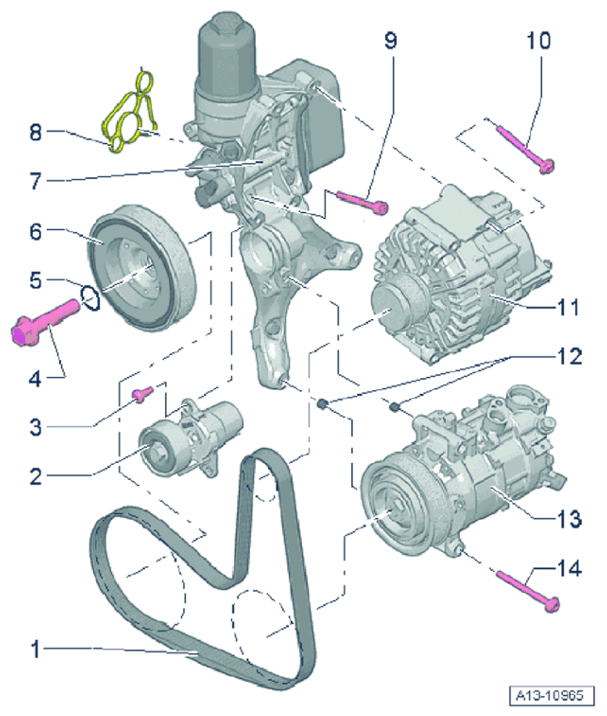

Assembly overview - belt drive
| 1 | Poly-V-belt - check for wear, check that it is not kinked and is fitted correctly on the pulleys during installation |
| 2 | Tensioning device for poly-V-belt |
| 3 | Screw - replace Initial - tightening 8 Nm (6 ftlb.) Final tightening + 90 (67 ftlb.)° |
| 4 | Check the strength of the screw before fitting! |
| 4 | Screw 8.8 /replace, coat O-ring with oil Initial - tightening 150 Nm (111 ftlb.) Final tightening + 90 (67 ftlb.)° |
| 4 | Screw 10.9/replace, coat O-ring with oil Initial - tightening 100 Nm (74 ftlb.) Final tightening + 180 (133 ftlb.)° |
| 5 | O-ring |
| 6 | Pulley |
| 7 | Auxiliary unit holder |
| 8 | Seal |
| 9 | Screw - replace, observe specified sequence : Initial tightening 20 Nm (15 ftlb.) Final tightening + 90 (67 ftlb.)° |
| 10 | Screw |
| 11 | Generator |
| 12 | Dowel sleeves |
| 13 | Screw Tightening torque 25 Nm (19 ftlb.) |
