Balance Shafts

WARNING: This page is about a different variant/trim than selected.

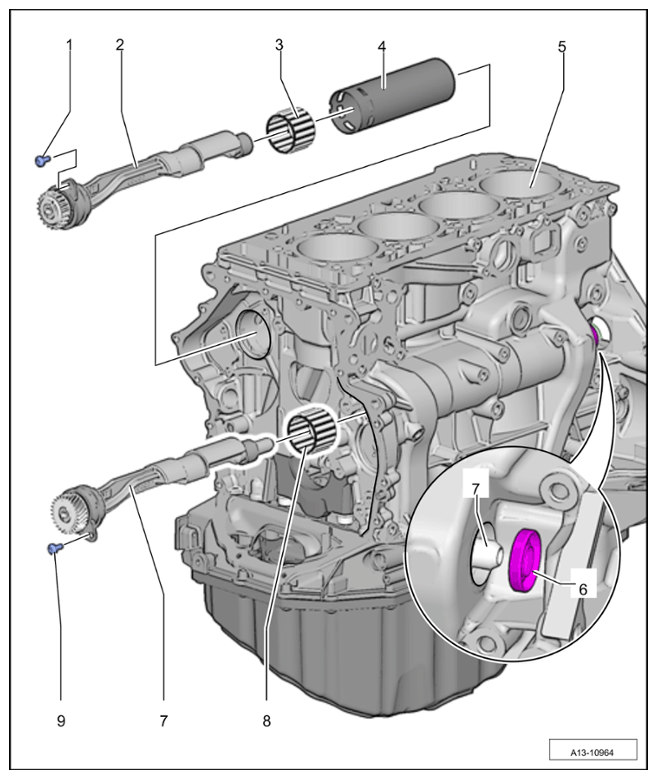

Fig 1: Balance Shafts Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balance shafts

1	Screw/replacing Initial - tightening torque 4 Nm (3 ftlb.) Final tightening torque + 45°
2	Replacing balance shaft/coating mount with oil
3	Needle-roller bearing
4	Pipe for balance shaft/check installation position
5	Cylinder block
6	Shaft seal
7	Replacing balance shaft/coating mount with oil
8	Needle-roller bearing
9	Screw/replacing Initial - tightening torque 4 Nm (3 ftlb.) Final tightening torque + 45°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

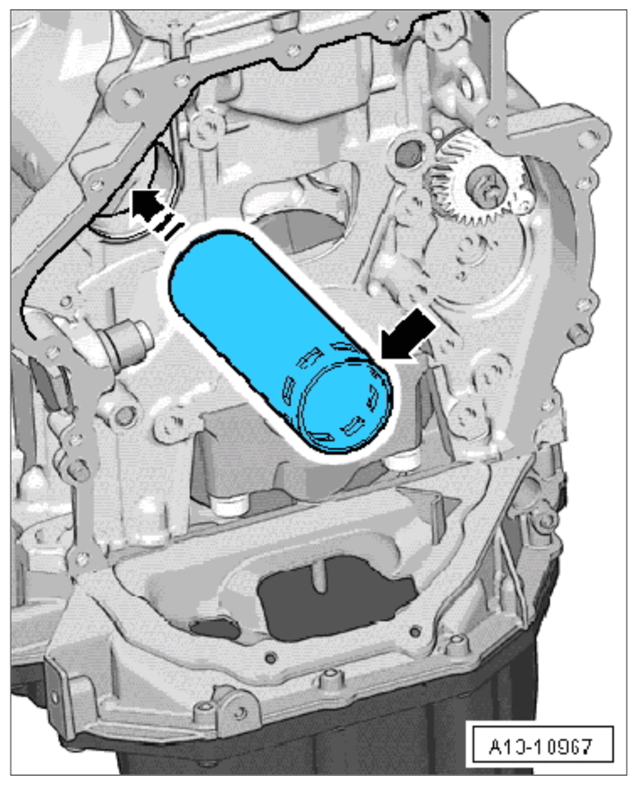

Pipe for balance shaft - installation position

Arrow Openings -arrow- must be facing the timing chain
