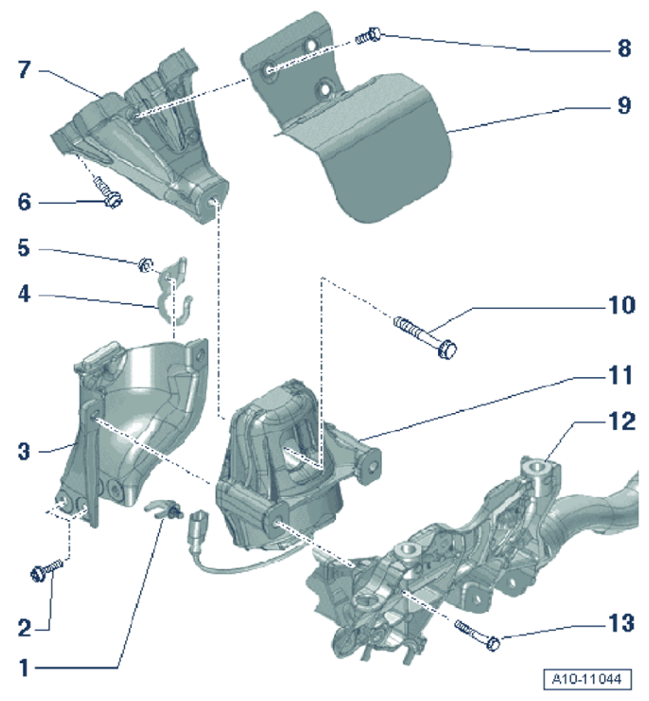

Fig 1: Engine Mounting Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mounts

1	Clip
2	Screw Tightening torque 20 Nm (15 ftlb.)
3	Retainer plate/If the engine mount retainer plate is defective, check retainer plate on the opposite side and replace if necessary
4	Not installed
5	Not installed
6	Screw Tightening torque 40 Nm (30 ftlb.)
7	Engine support
8	Screw Tightening torque 10 Nm (7.5 ftlb.)
9	Heat shield
10	Screw/replace Tightening torque 90 Nm (67 ftlb.) + 90°
11	Engine mount/only replace in pairs
12	Front-axle carrier
13	Screw Tightening torque 55 Nm (41 ftlb.)
