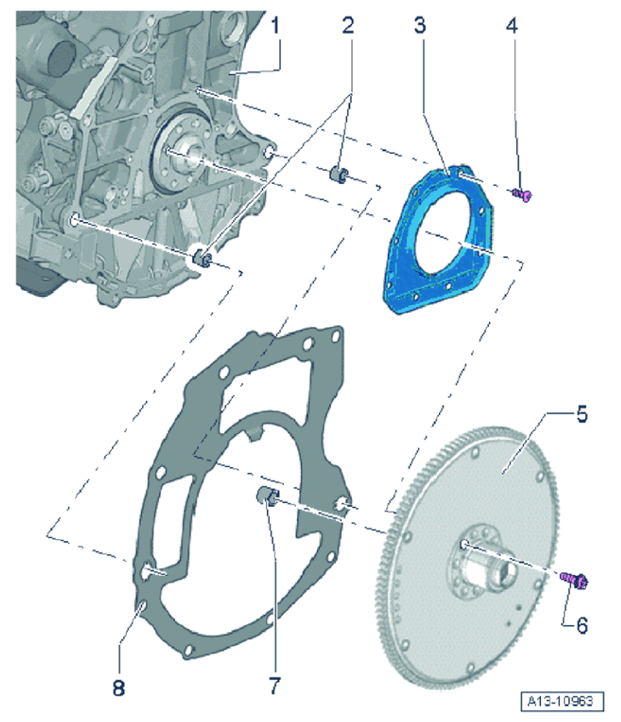

Crankcase on transmission side
| 1 | Crankcase |
| 2 | Dowel sleeve |
| 3 | Joint flange/replace |
| 4 | Screw/replace Tightening - torque 9 Nm (6.5 ftlb.) |
| 5 | Drive plate |
| 6 | Screws/replace Initial - tightening 60 Nm (44 ftlb.) Final tightening + 90° |
| 7 | Not installed |
| 8 | Intermediate plate/do not bend |
