Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

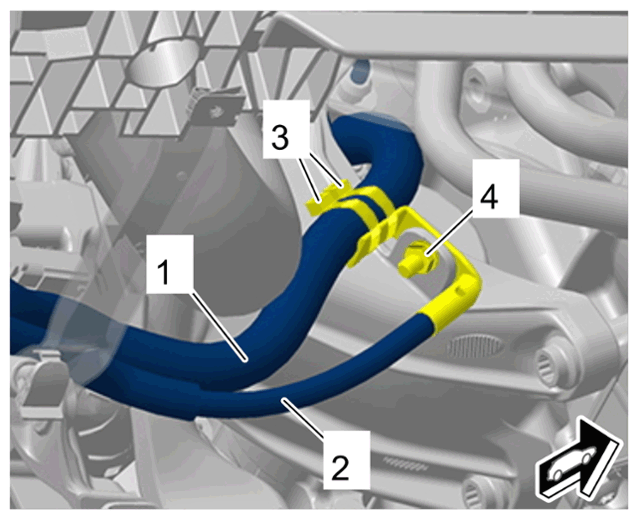

| Fastening nut securing ground line to bracket for engine mount | Item 4 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Ground line on bracket for engine mount |
|||||
| Fastening screw for engine support | Tightening torque | 40 Nm (30 ftlb.) | |||
| Fastening screw for starter (transmission side) | Replace | Initial tightening | 30 Nm (22 ftlb.) | ||
| Fastening screw for starter (transmission side) | Replace | Final tightening | + 105° | +/- 30° | |
| Fastening nut on B+ line | Tightening torque | 15 Nm (11 ftlb.) | |||
| Fastening screw for starter (engine side) | Tightening torque | 65 Nm (48 ftlb.) |
