Removing The Starter
WARNING: This page is about a different variant/trim than selected.

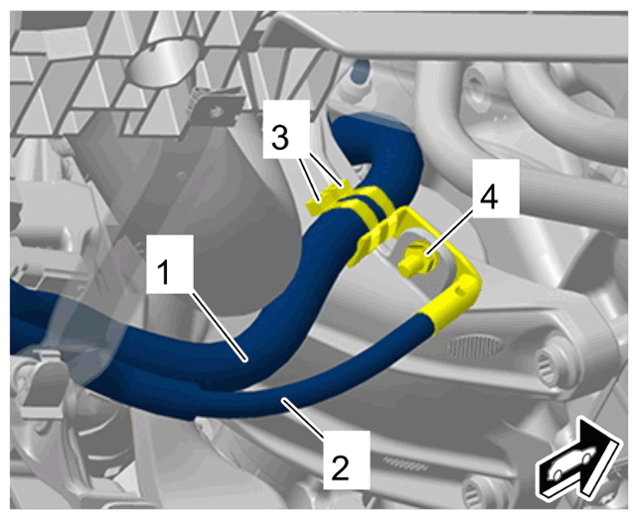

- Disconnect lines -1 and 2-
from engine mount support.
- 1.1
Loosen tie-wrap -3-
.
- 1.2
Unscrew nut -4-
.
- 1.3
Remove ground line -2-
from engine mount support.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Lines on engine mount bracket

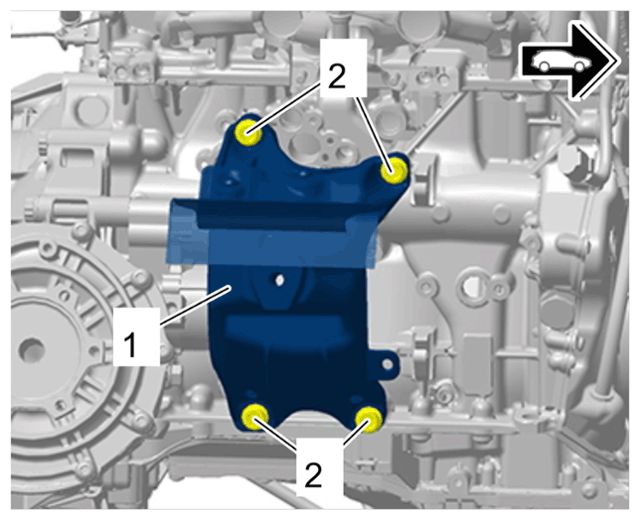

- Remove right engine mount support -1-
.
- 2.1
Unscrew screws -2-
and remove right engine mount support -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Right engine mount support

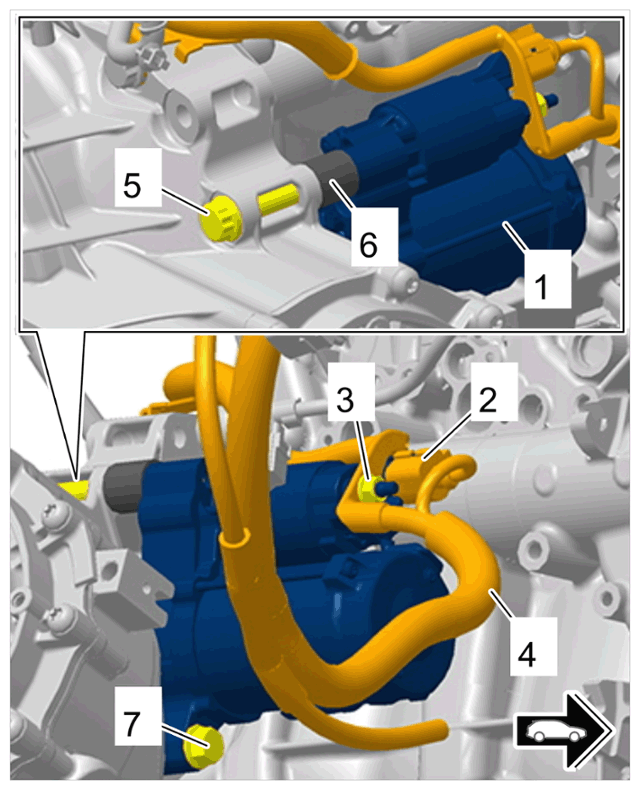

- Remove starter -1-
.
- 3.1
Release and disconnect electric plug connection -2-
.
- 3.2
Unscrew nut -3-
and remove B+ line -4-
.
- 3.3
Unscrew screw -5-
and remove spacer sleeve -6-
.
- 3.4
Unscrew screw -7-
and remove starter -1-
together with screw -7-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Starter
