Removing The Generator
WARNING: This page is about a different variant/trim than selected.

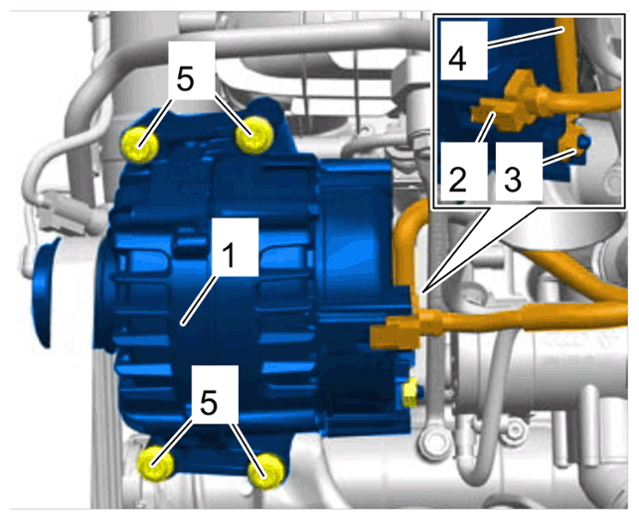

- Remove the generator -1-
.
- 1.1
Release and disconnect electric plug connection -2-
.
- 1.2
Unscrew nut -3-
and remove B+ line -4-
.
- 1.3
Unscrew screws -5-
and remove the generator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Generator
