Removing Vehicle Electrical System Battery

NOTIFICATION

Using charging cables/jump leads directly on the vehicle battery.

• Risk of damage to battery sensor
  1. → Always connect charging cables/jump leads to the external power supply for jump-lead starting.

Information

Switch off all loads and remove the ignition key.

• Do not disconnect the battery while the engine is running.
• Disconnect and re-connect battery with extreme caution.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 metres).

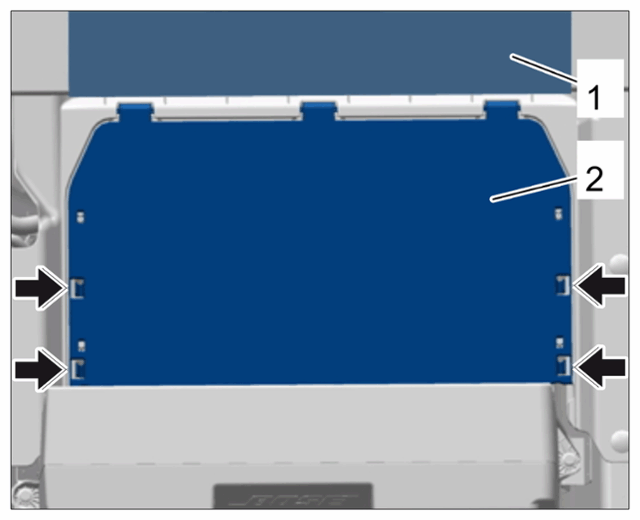

2. Disengage cover -2-Arrows-  and fold it forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

3. Danger of short circuit when loosening the terminal clamps!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Terminal clamps

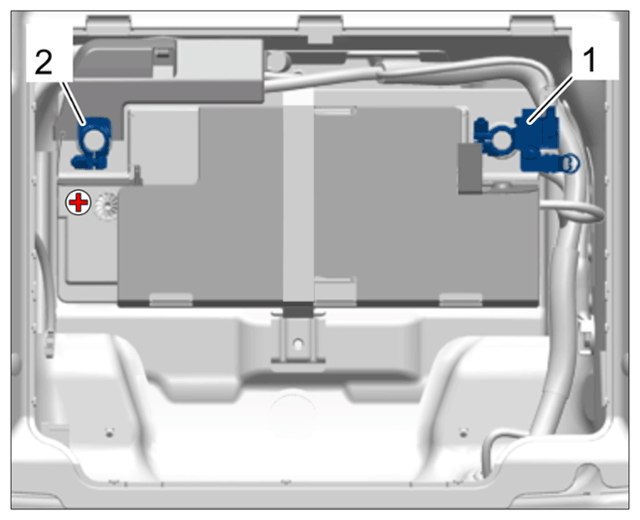

   1. 3.1 First  open the cover on the negative terminal and disconnect terminal clamp -1-  for the ground line from the battery terminal.
   2. 3.2  Insulate terminal clamp or route ground line to prevent any contact with the battery terminal.
   3. 3.3  Open cover on the positive terminal and disconnect terminal clamp -2-  for the B+ line from the battery terminal.

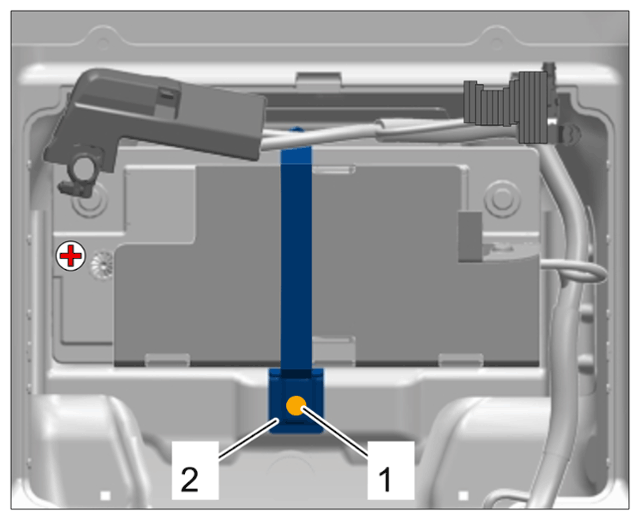

4. Unscrew fastening screw, -1-  remove clamp support -2-  and move it forward with a rebound strap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clamp support

5. Pull breather hose -1-  off the vehicle electrical system battery. -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Breather hose

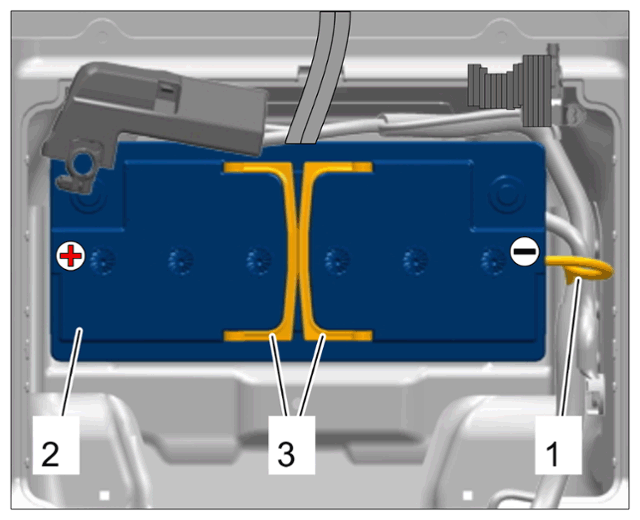

6. Bend up -3-  support clips and remove vehicle electrical system battery. Get another person to help if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vehicle electrical system battery
