Remove Tailpipe Cover (R4)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove tailpipe cover -1-  .
    1. 1.1  Remove screws -2-  .
    2. 1.2  Pull tailpipe cover -1-  off the rear silencer.

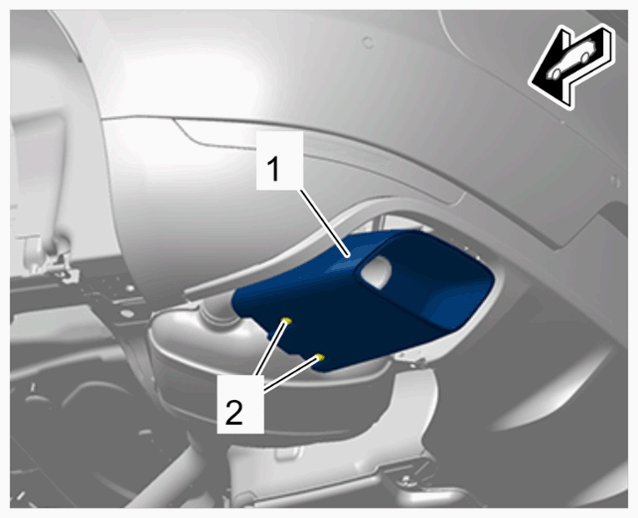

      G15151110Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tailpipe cover (R4)
