Installing Differential-Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1
Tighten screw on differential pressure sensor -5-
.
- Tightening torque 8 Nm (6 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

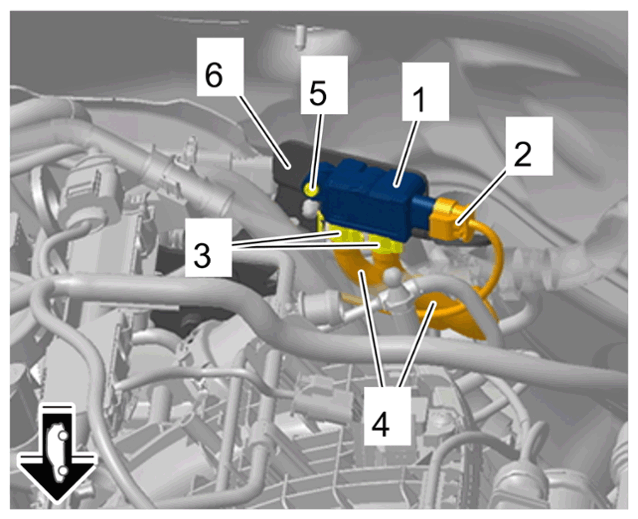

Differential pressure sensor
