Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Heat shields nuts | Spring nuts | Tightening torque | 2 Nm (1.5 ftlb.) | ||

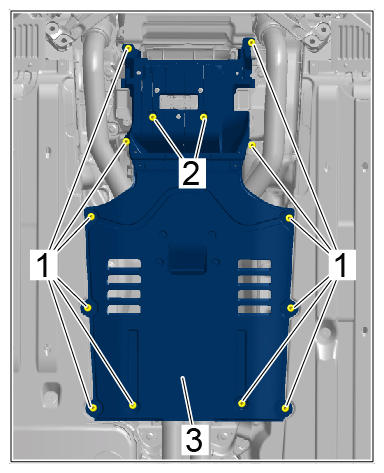

| Screws securing central cover for centre underbody to body | Item 1 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
Central cover for centre underbody |
|||||
| Screws securing central cover for centre underbody to gear support | Item 2 | Tightening torque | 3.5 (2.5 ftlb. Nm | ||
|
Central cover for centre underbody |
|||||
| Screws securing stone guard to body | Item 2 | Tightening torque | 20 Nm (15 ftlb.) |
