Removing Heat Shield On Lower Heat Shield

WARNING: This page is about a different variant/trim than selected.
  1. Remove air baffle -1-  .

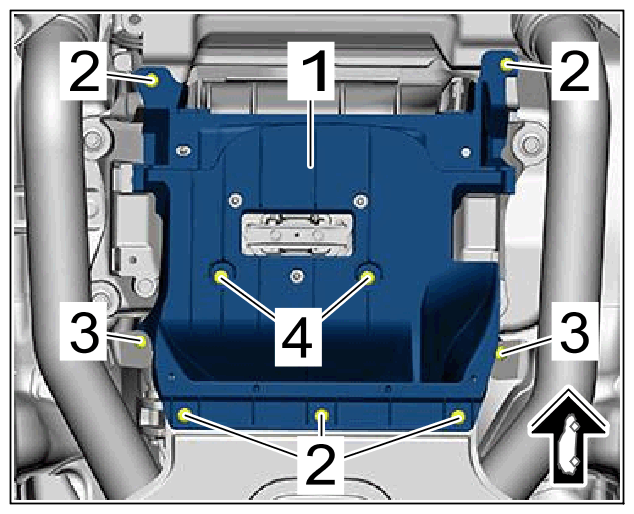

    G15151090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air baffle

    1. 1.1  Unscrew screws -2 and 3-  .
    2. 1.2  Unscrew screws -4-  and remove air baffle -1-  .
  2. Remove heat shield on lower heat shield -1-  .

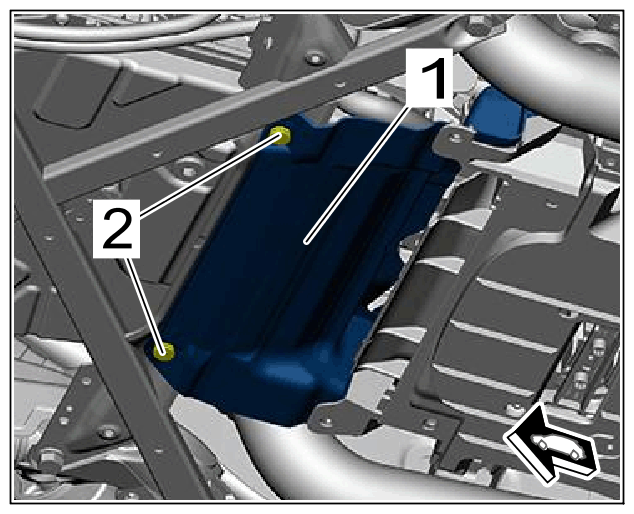

    G15151091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Head shield on lower heat shield

    1. 2.1  Release expansion rivets -2-  and pull them out.
    2. 2.2  Remove heat shield on lower heat shield -1-  .
