Removing Heat Shield On Firewall Lower Section

WARNING: This page is about a different variant/trim than selected.

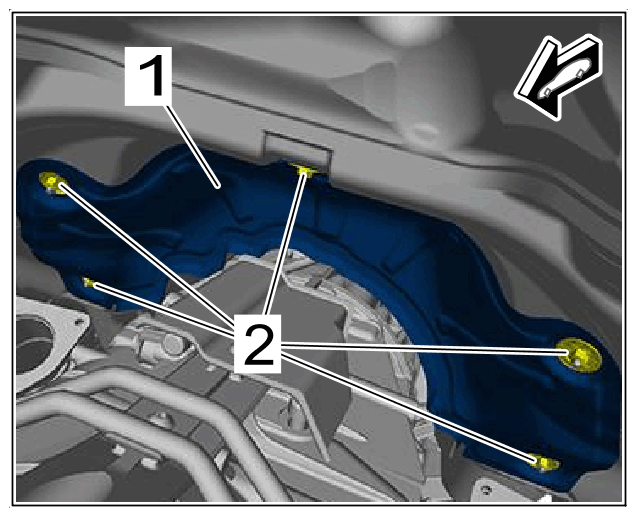

  1. Unscrew nuts -2-  and remove heat shield for firewall lower section -1-  .
    G15151087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on firewall lower section
