Removing Heat Shield On Cardan Shaft Centre Bearing

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield on cardan shaft centre bearing -1-  .

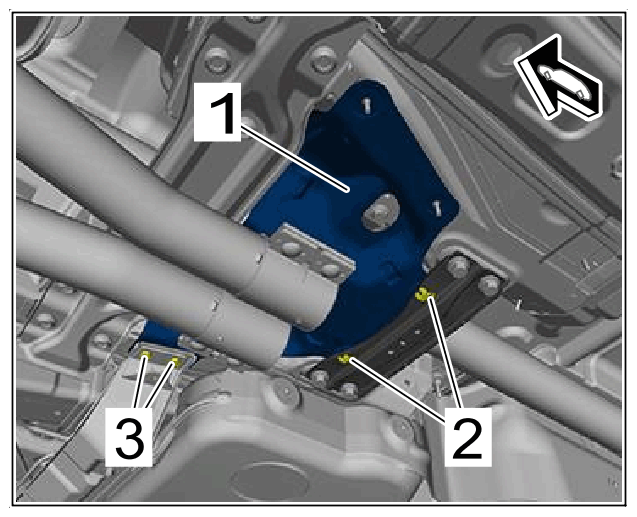

    G15151093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on cardan shaft centre bearing

    1. 1.1  Unclip clips -2-  .
    2. 1.2  Unscrew screws -3-  on the stone guard.
    3. 1.3  Remove heat shield on cardan shaft -1-  centre bearing.
