Removing Heat Shield Left And Right

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

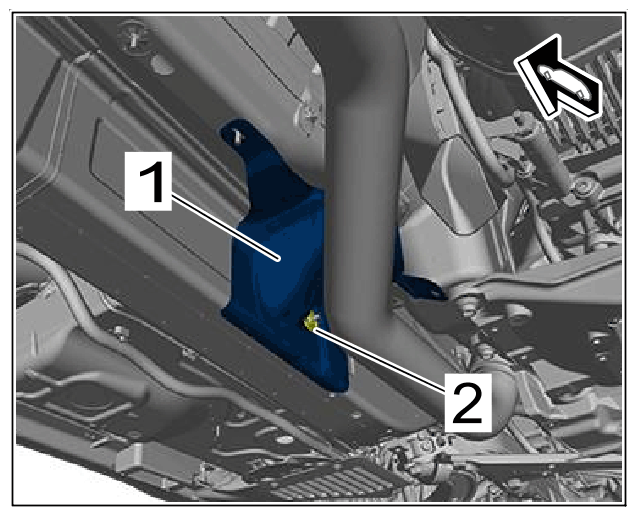

Unscrew nuts -2-  and remove left heat shield -1-  .

G15151092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield left
