Removing Heat Shield For Rear Muffler

WARNING: This page is about a different variant/trim than selected.

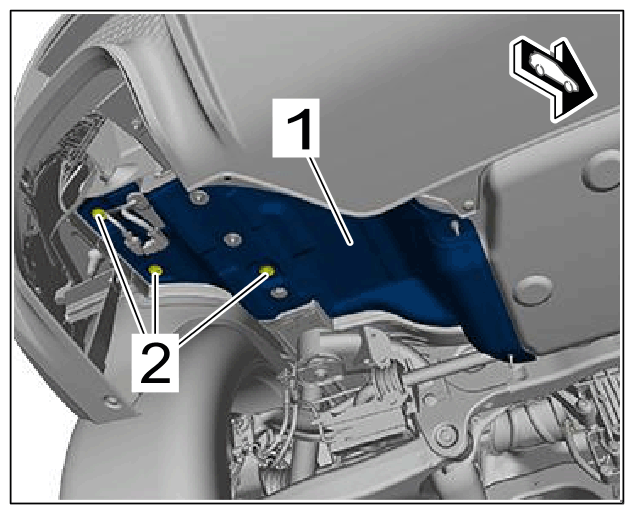

  1. Unscrew nuts -2-  and remove heat shield for rear muffler -1-  .
    G15151096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for rear muffler
