Remove Heat Shields On Longitudinal Member

WARNING: This page is about a different variant/trim than selected.
  1. Unclip-2-  clips and remove heat shield on longitudinal member -1-  .

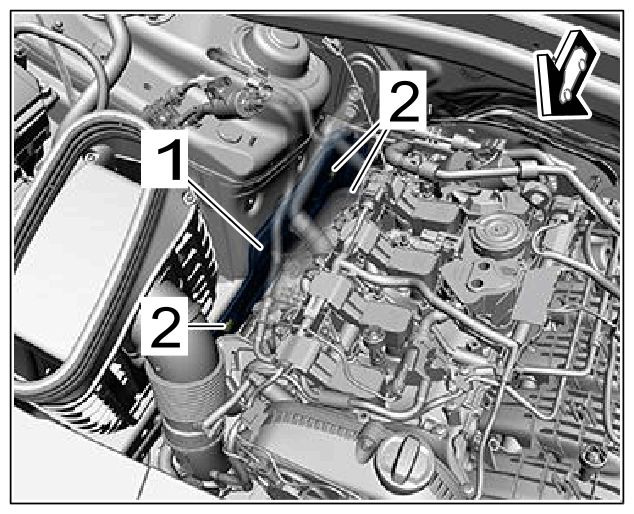

    G15151086Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on left longitudinal member
