Component Information
WARNING: This page is about a different variant/trim than selected.

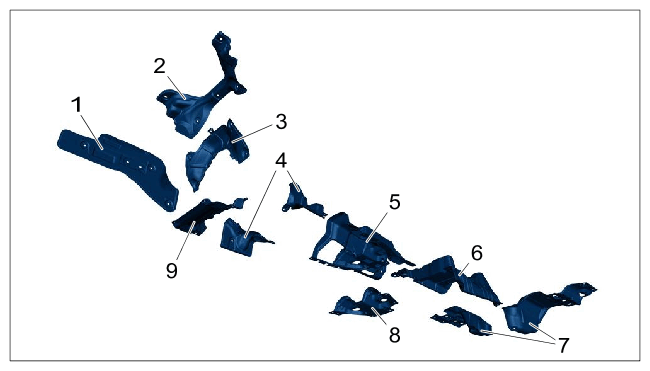

Component information for heat shields
| 1 | Heat shield on right longitudinal member (R4) |
| 2 | Heat shield on firewall upper section |
| 3 | Heat shield on firewall lower section (V6 turbo) |
| 4 | Heat shields left and right (V6 turbo) |
| 5 | Heat shield on tunnel, centre |
| 6 | Heat shield centre |
| 7 | Heat shields for rear muffler |
| 8 | Heat shield on cardan shaft centre bearing |
| 9 | Heat shield on lower heat shield (V6 turbo) |
