Remove Shield For Turbocharger
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.
- Unscrew the screws -2-
and remove the turbocharger shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

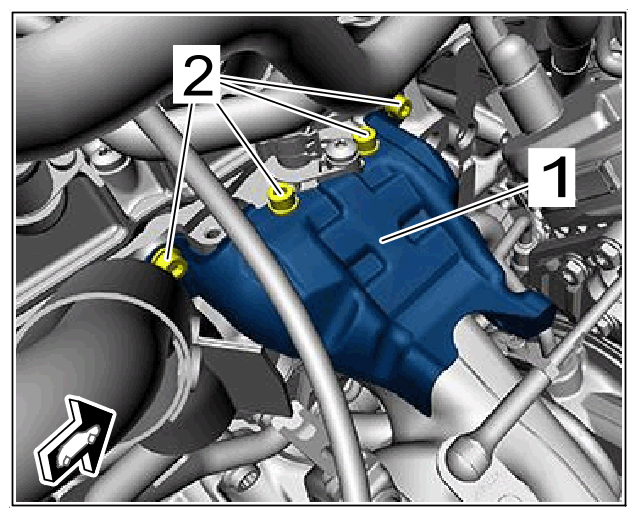

Shield on turbocharger
