Installing Exhaust System

Information

The help of another person is required for this step.

1. 1.1  Position exhaust system -1-  on > VAS 6931 - engine and gearbox jack  and secure with a tension strap -Arrows-  .
2. 1.2  Guide the exhaust system -1-  , which is secured with a tension strap -Arrows-  , upwards using the > VAS 6931 - engine and gearbox jack  and position it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

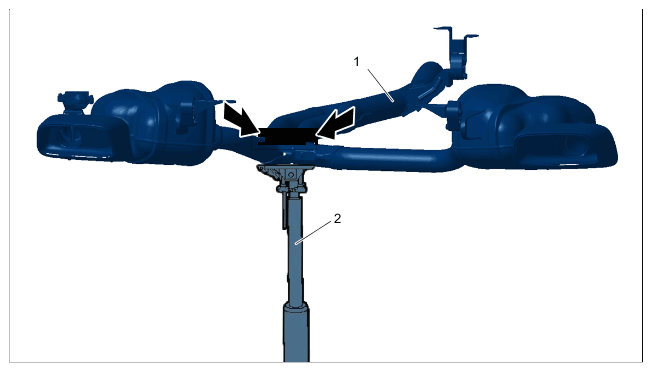

   Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)

1. 2.1  Connect cable plug -6-  on servo motor for flap control -7-  and lock it.
2. 2.2  Screw on nuts -4-  , but do not tighten yet.
3. 2.3  Fit screws -5-  , but do not tighten yet.
4. 2.4  Slide new clamp -3-  onto exhaust pipes at the vehicle side and align it so that the threaded joint is not lower than the exhaust pipe.
5. 2.5  Tighten nuts on clamp -2-  .
   • Tightening torque 30 Nm (22 ftlb.)
6. 2.6  Tighten nuts -4-  .
   • Tightening torque 23 Nm (17 ftlb.)
7. 2.7  Tighten screws -5-  .
   • Tightening torque 20 Nm (15 ftlb.)

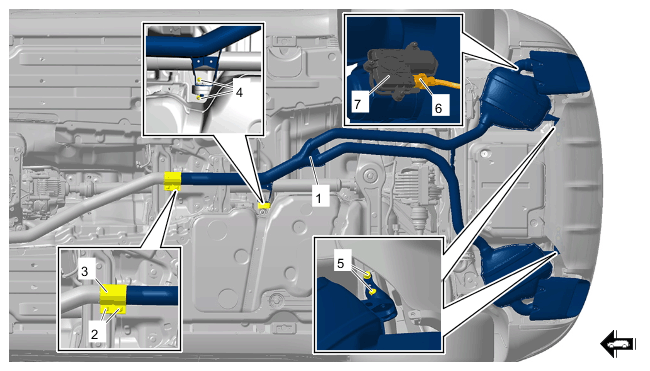

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Exhaust system

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

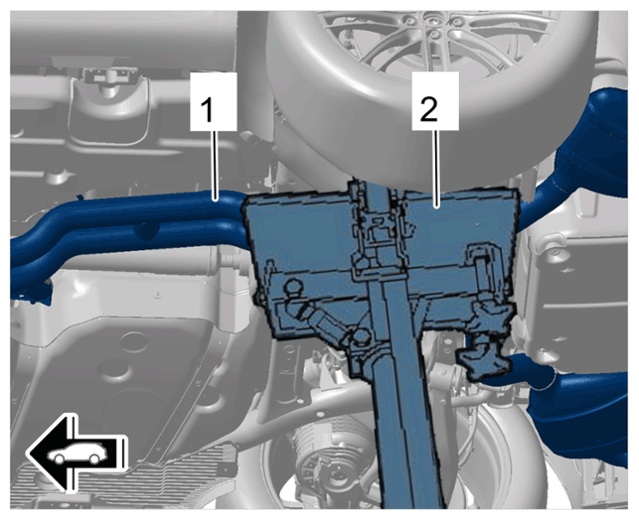

Exhaust system on VAS 6931 engine and gearbox Jack similar to illustration)
