Installation Position

WARNING: This page is about a different variant/trim than selected.

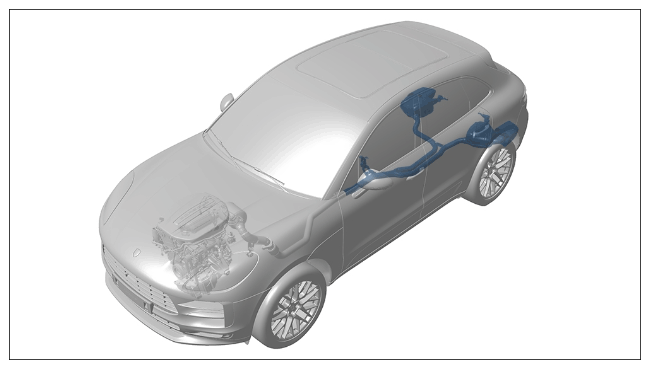

G15151067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

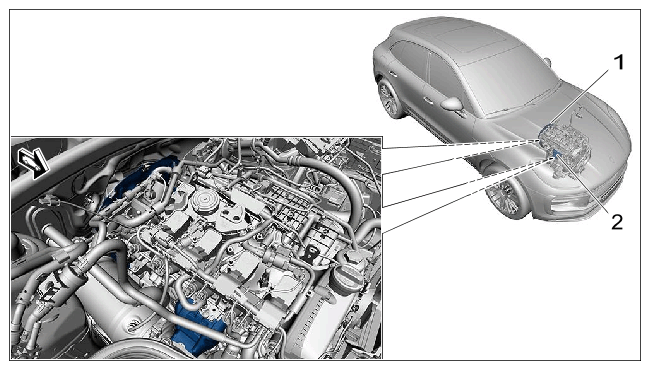

G15151074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1 Shield on particle filter
2 Shield on turbocharger
