Installing Radiator

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

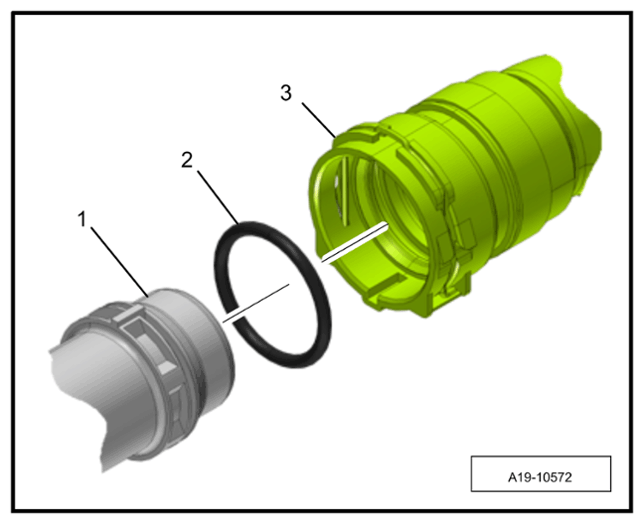

Radiator flange

• Sealing rings -2- must - be replaced and coated with coolant.

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1  Replace seals on coolant hoses at the top and bottom.
   2. 1.2  Tighten screws for radiator holder.

      Tightening torque 14 Nm (10.5 ftlb.)

   3. 1.3  Tighten screws for ATF lines.

      Tightening torque 5 Nm (3.5 ftlb.)
