Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

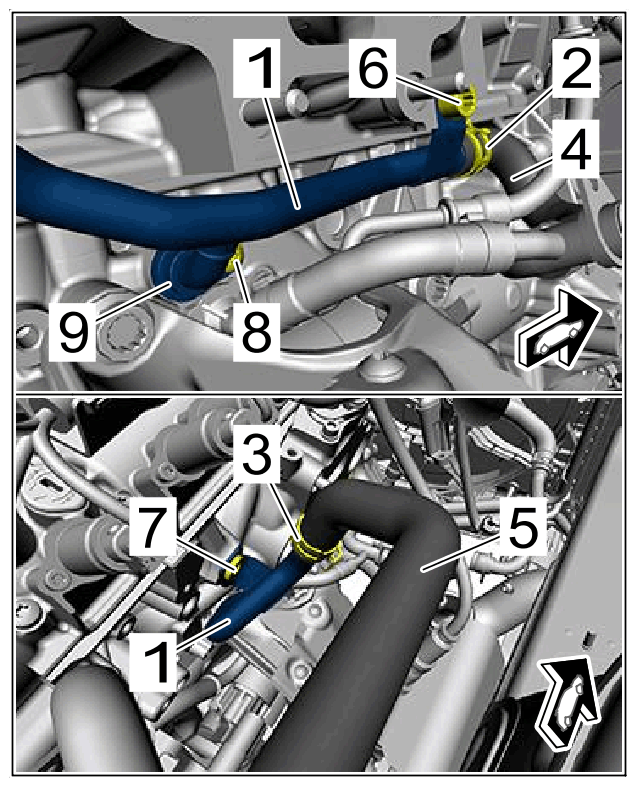

Screw securing coolant line to intake-air distributor		Tightening torque	9 Nm (6.5 ftlb.)
Screw for right coolant pipe (engine) adaptor	Item 8	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right coolant pipe (engine)
Screw securing right coolant pipe (engine) to top of cylinder head	Item 7	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right coolant pipe (engine)
Screw securing right coolant pipe (engine) to bottom of cylinder head	Item 6	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Right coolant pipe (engine)
