Remove Coolant Pipe (Engine) At The Left

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

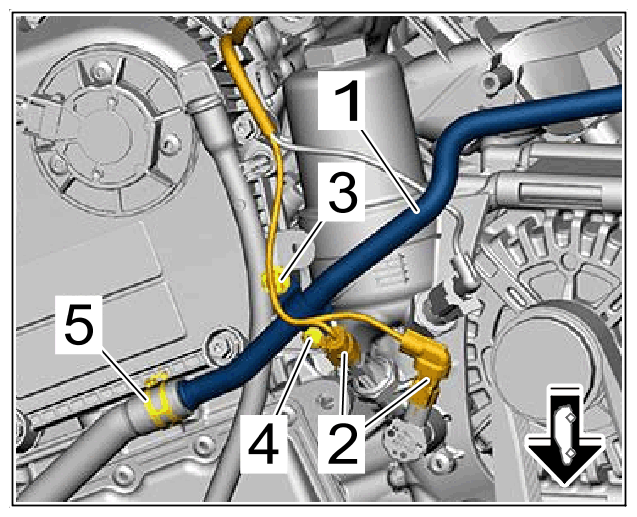

Electric plug connections

1. 1.1  Release and disconnect electric plug connections -2-  .
2. 1.2  Unclip clip -3-  .
3. 1.3  Unscrew screws -4-  .
4. 1.4  Loosen spring band clamp -5-  using VAS 6890 - spring band clamps pliers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

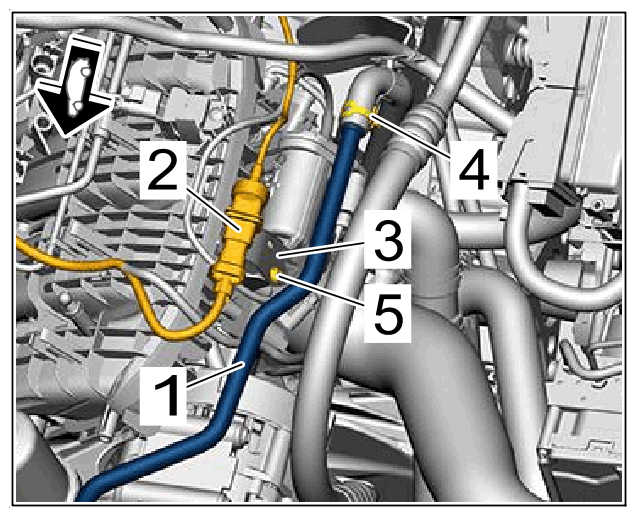

Left coolant pipe

1. 2.1  Unclip electric plug connection -2-  from holder -3-  .
2. 2.2  Loosen spring band clamp -4-  using VAS 6890 - spring band clamps pliers.
3. 2.3  Unscrew screws -5-
4. 2.4  Disconnect left coolant pipe -1-  from coolant hoses.
5. 2.5  Catch escaping coolant and close off line connections using suitable stoppers.
