Installing Centre Coolant Pipe (Engine) At The Right

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

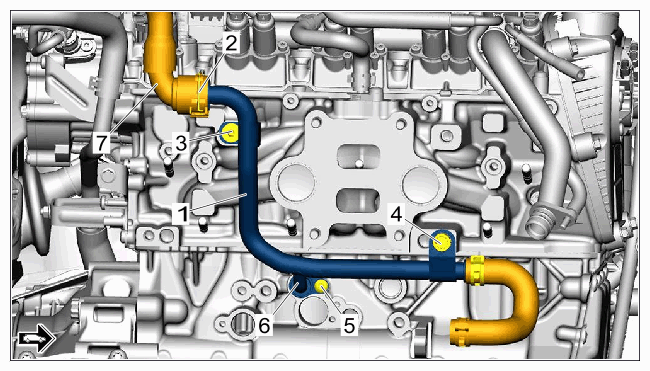

Right coolant pipe
1. 1.1 Replace sealing ring.
2. 1.2 Screw in and tighten screw -3- .
  Tightening torque 20 Nm (15 ftlb.)
3. 1.3 Screw in and tighten screw -4- .
  Tightening torque 20 Nm (15 ftlb.)
4. 1.4 Screw in and tighten screw -5- .
  Tightening torque 9 Nm (6.5 ftlb.)
