Installing Centre Coolant Pipe (Engine) At The Left
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1
Screw in and tighten screw -4-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

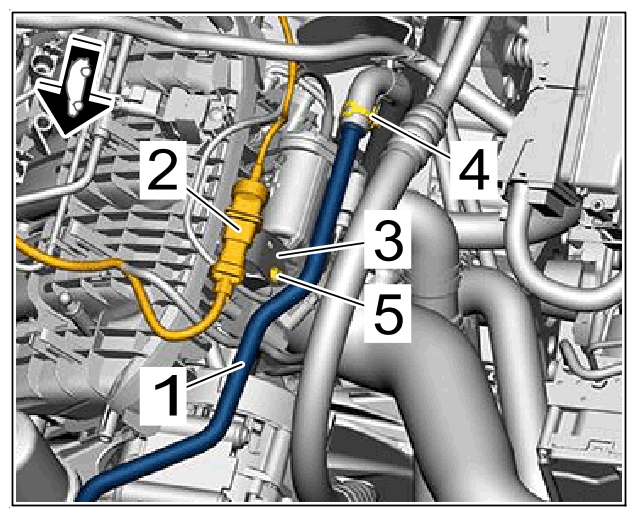

Electric plug connections
- 1.2
Screw in and tighten screw -5-
.
Tightening torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

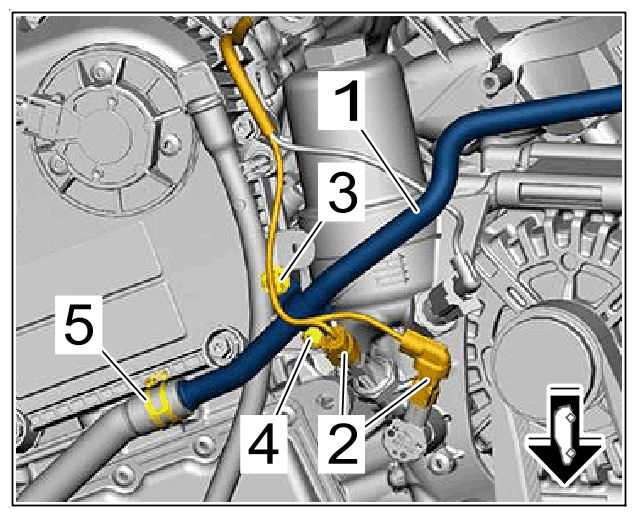

Left coolant pipe
