Installing Coolant Regulator Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

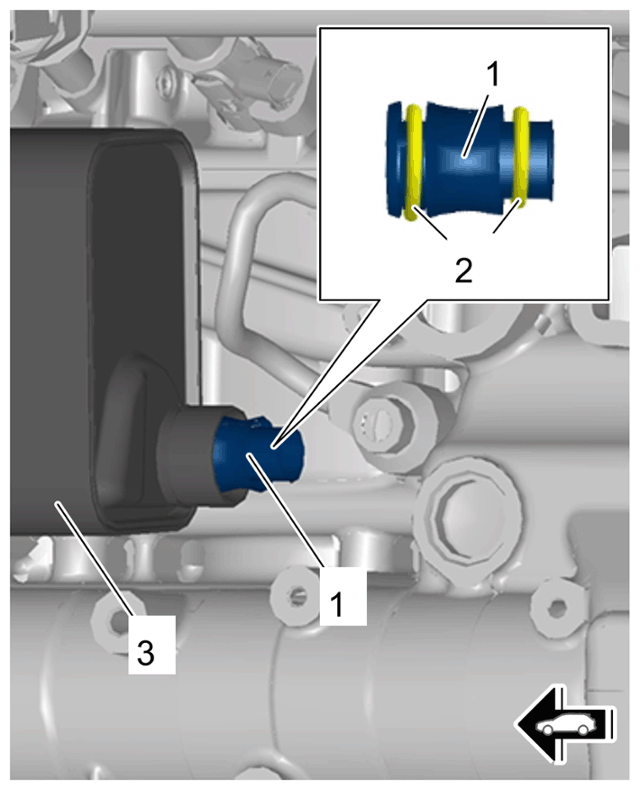

Connecting piece for oil cooler/coolant regulator housing

1. 1.1  Pull connecting piece -1-  off the coolant regulator housing.
2. 1.2  Replace both O-rings -2-  on the connecting piece -1-  and coat new O-rings -2-  with coolant.
3. 1.3  Remove stoppers.
4. 1.4  Insert connecting piece -1-  in the oil cooler -3-  .

1. 2.1  Clean sealing surfaces.
2. 2.2  Replace seal on coolant regulator housing.
3. 2.3  Make sure that both centring pins are inserted in the cylinder block.

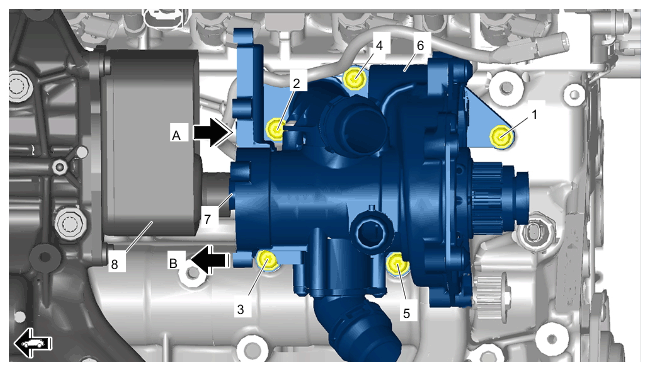

Fig 1: Coolant Regulator Housing Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing

1. 3.1  Remove stoppers.
2. 3.2  Push coolant regulator housing -6-  onto connection piece -7-  .
3. 3.3  Fit coolant regulator housing -6-  on the centring pins on the cylinder block.
4. 3.4  Fit screws for the coolant regulator housing -1 to 5-  is far as they will go by hand.
5. 3.5  Tighten screws on coolant regulator housing in the sequence -1 to 5-  .

> Tightening - torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

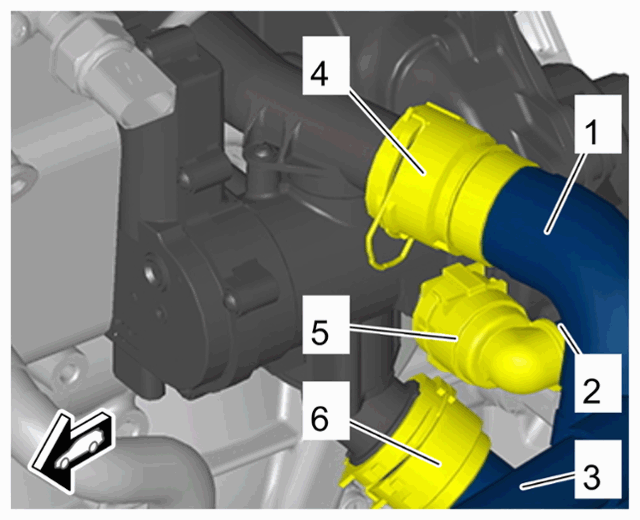

Coolant hoses on coolant regulator housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

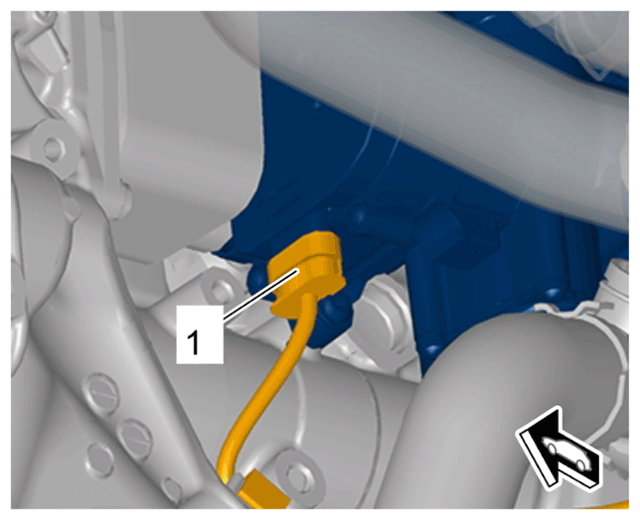

Cable plug on coolant regulator housing
