Component Information
WARNING: This page is about a different variant/trim than selected.

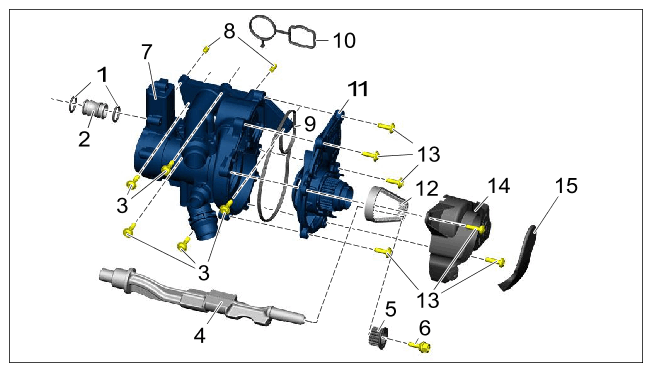

Component information - coolant pump
| 1 | Sealing rings |
| 2 | Joining sockets |
| 3 | Screws on coolant regulator housing |
| 4 | Balance shaft on intake side |
| 5 | Drive wheel for drive belt |
| 6 | Drive wheel screw |
| 7 | Coolant regulator housing |
| 8 | Dowel pins |
| 9 | Coolant pump seal |
| 10 | Gasket for coolant regulator housing |
| 11 | Coolant pump |
| 12 | Coolant pump drive belt |
| 13 | Screws for coolant pump |
| 14 | Drive belt cover |
| 15 | Cover on drive belt cove |
