Installing Coolant Pump

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

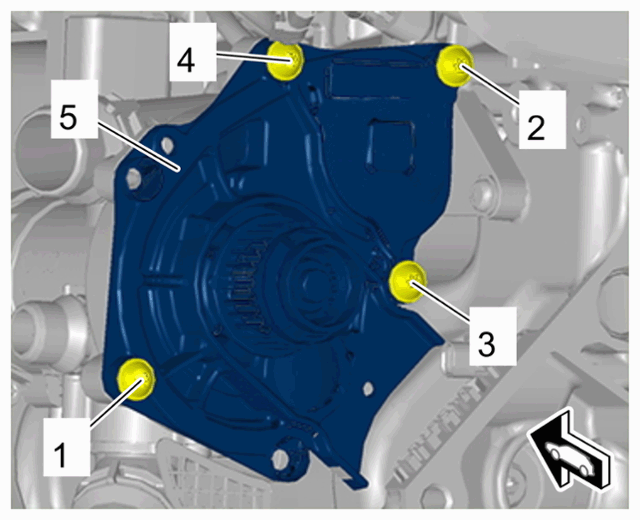

Fig 1: Coolant Pump Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump
1. 1.1 Replace coolant pump seal.
2. 1.2 Fit coolant pump screws and tighten in the sequence -1 to 4- .
  > Tightening - torque 9 Nm (6.5 ftlb.)
