Draining Coolant

NOTIFICATION

Cooling circuit not filled correctly

• Risk of damage to vehicle components
  1. → After relieving the system pressure, do not start the engine or high-voltage system.
  2. → Fill and bleed the cooling system correctly before starting the engine or high-voltage system.

Information

• Cooling systems with thermal management (controlled thermostats or coolant valves for controlling engine temperature) must be vacuum-filled.
• The thermostat must not be activated or electric current must not be applied to the thermostat since this can cause irreparable damage to the thermoelectric couple.
• Filling with a watering can only does not always guarantee a complete fill (trapped air - overheating).
• Clamps on cooling system components should be examined carefully following refilling (check the coolant level while cold and top up several times as required).
• Clamps on cooling system components must also be vacuum-filled if significant amounts of coolant are drained. Drain at least two litres of coolant for vacuum-filling because otherwise the correct vacuum cannot be built up.

Information

• Note special features in the corresponding chapter for vehicles with auxiliary heater.

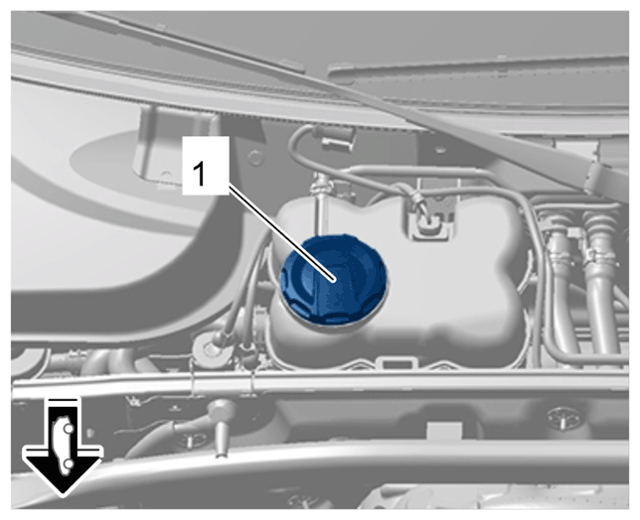

1. Slowly open cap on coolant reservoir -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant reservoir cap

2. Place drip pan under the radiator.

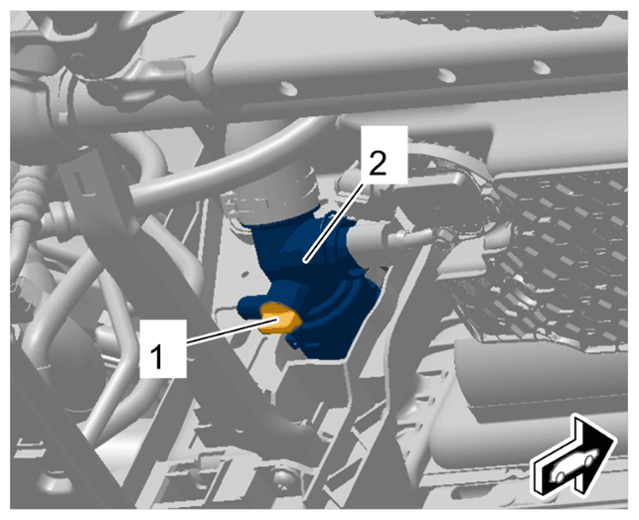

3. Open drain plug -1-  on the adapter -2-  and drain coolant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant drain plug
