Installing Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

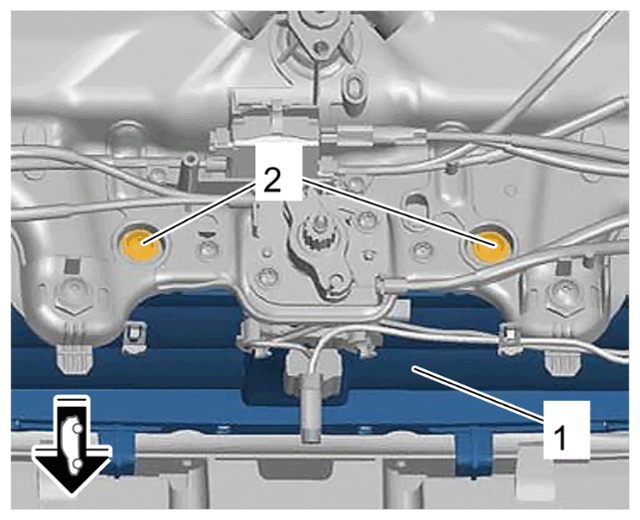

1.1 Tighten screws -2- .

> Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lock carrier

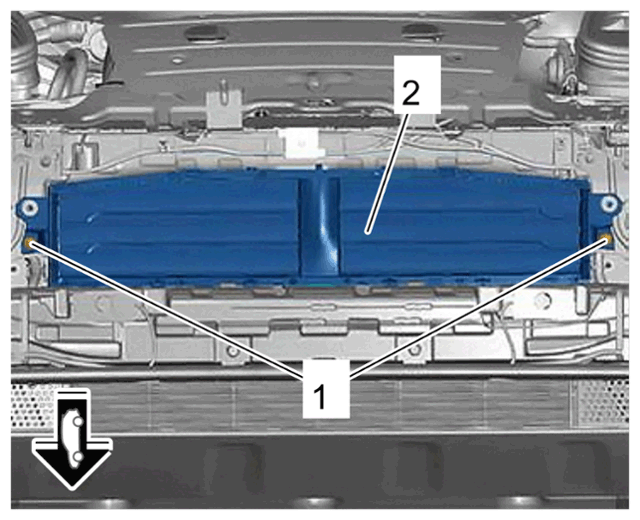

1.2 Tighten screws -1- .

> Tightening torque 9.7 Nm (7.2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps

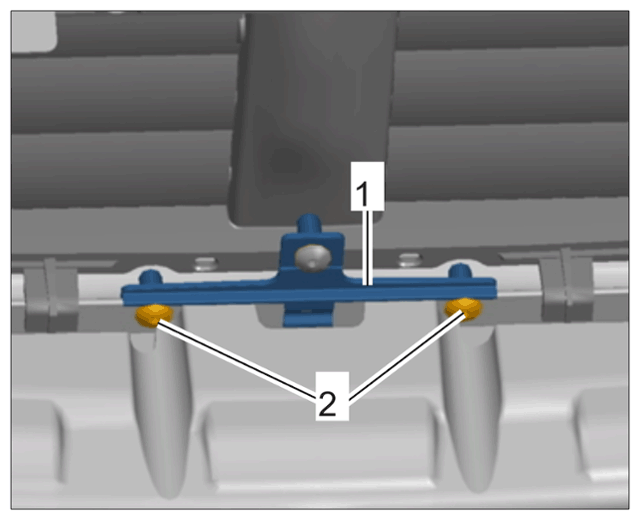

1.3 Only for vehicles with distance measuring sensor:
Tighten screws -2- .

> Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Distance measuring sensor holder
