Installing Motor For Cooling-Air Flaps
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

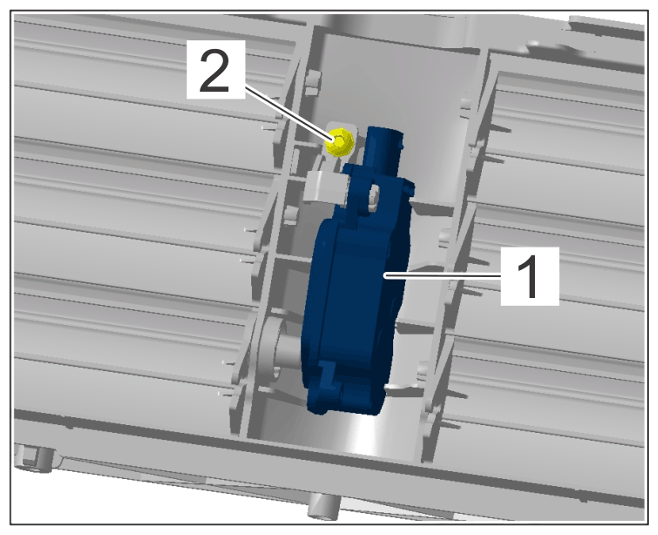

Motor for cooling-air flaps
- 1.1
Tighten screw for engine cooling-air flaps -2-
.
Tightening torque 2.5 Nm (1.75 ftlb.)
