Removing Front Air Guide (At The Top)
WARNING: This page is about a different variant/trim than selected.
- Remove front air guide -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

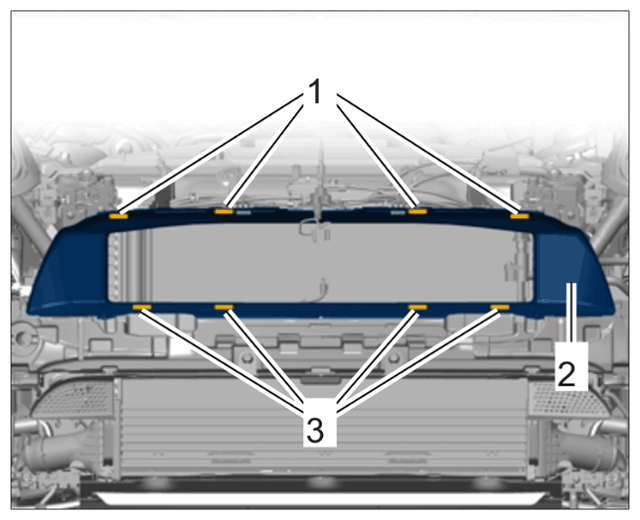

Clips on front air guide
- 1.1
Unclip top clips -1-
on the front air guide -2-
.
- 1.2
Unclip bottom clips -3-
on the front air guide -2-
.
- 1.3
Remove front air guide -2-
.
