Removing Cooling Fan Housing
WARNING: This page is about a different variant/trim than selected.

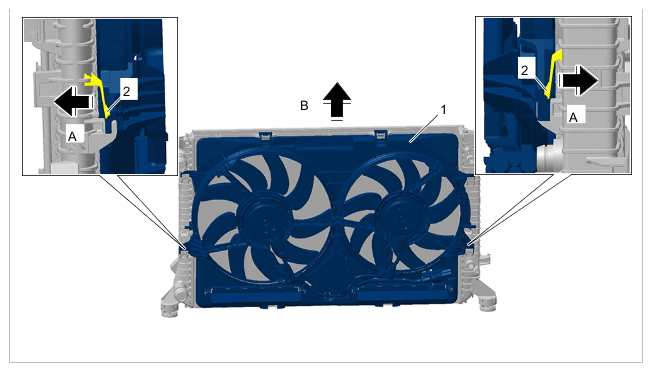

- Remove cooling fan housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
cooling fan housing
- 1.1
Release locking lugs -2-
on both sides using a screwdriver -arrow A-,
lift the cooling fan housing -1-
up out of the guides - B-
and remove it from the radiator.
