Removing Electric Fan

WARNING: This page is about a different variant/trim than selected.
  1. Remove electric fan -1-  .

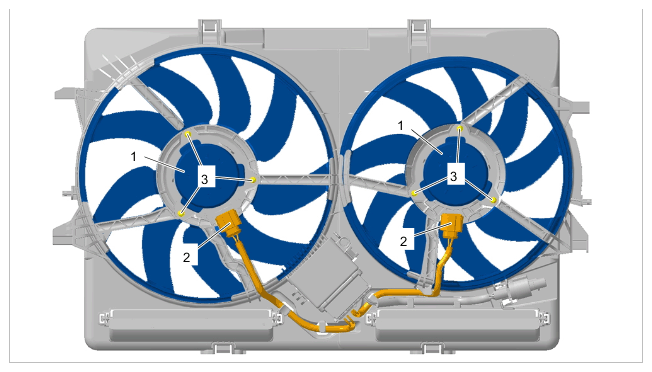

    G15145093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric fan

    1. 1.1  Release and disconnect electric plug connections -2-  .
    2. 1.2  Unscrew screws -3-  .
    3. 1.3  Remove electric fan -1-  .
