Removing Oil Cooler Bracket

WARNING: This page is about a different variant/trim than selected.

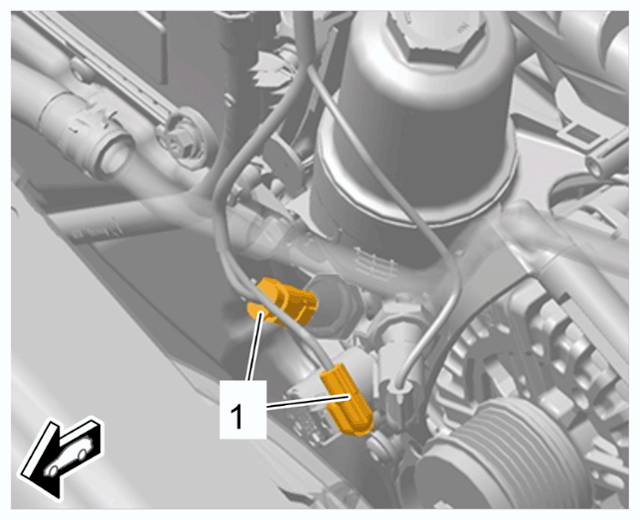

Release and disconnect cable plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil-pressure sender on oil filter bracket

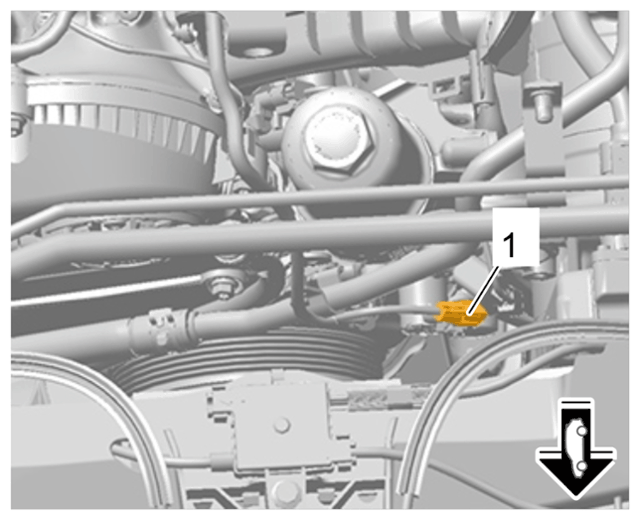

Release and disconnect cable plug on control valve for piston cooling nozzles -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug on control valve for piston cooling nozzles

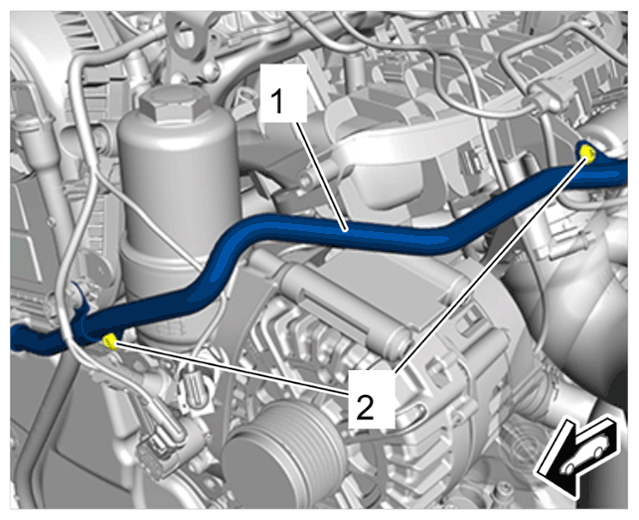

Disconnect coolant pipe -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipe
1. 3.1 Unscrew screws -2- .
2. 3.2 Swivel coolant pipe -1- upwards.
Remove oil filter.
> 173055 - CHANGING OIL FILTER
Remove oil cooler bracket.

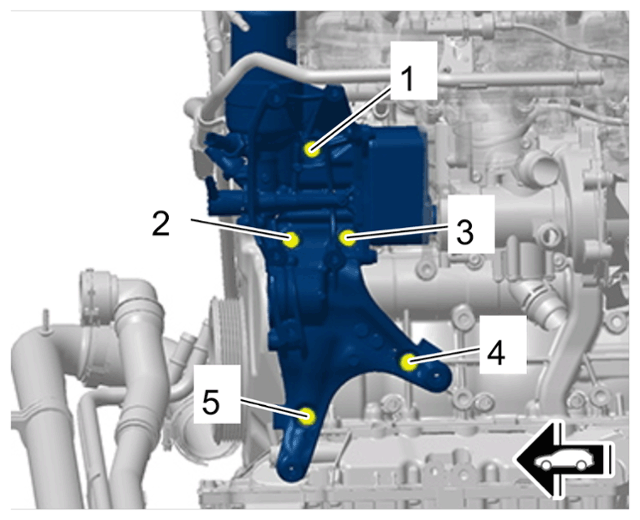

Fig 1: Oil Cooler Bracket Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil cooler bracket
1. 5.1 Unscrew screws -1 to 5- .
  1. 5.1.1 Replace screws.
2. 5.2 Pull oil cooler bracket off the coolant regulator housing.
