Removing Oil Pan

Information

Check for residual oil when removing the oil pan.

1. Remove oil pan -18-  .

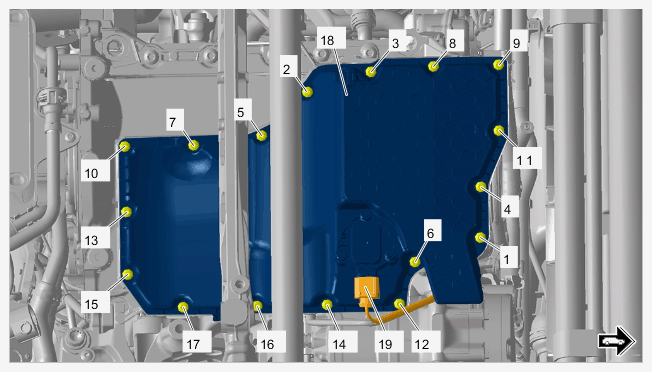

   Fig 1: Oil Pan Screws Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pan

   1. 1.1  Release and disconnect cable plug for oil level sensor -19-  .
   2. 1.2  Unscrew screws on oil pan in the sequence -17 to 1-  .
      1. 1.2.1  Replace screws.
   3. 1.3  Remove oil pan -18-  .
      1. 1.3.1  Loosen carefully using a plastic hammer if necessary.
   4. 1.4  Replace oil pan seal.
   5. 1.5  Clean sealing surfaces.
