Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove wheels from front axle.
> 440519 - REMOVING AND INSTALLING WHEEL
Support the engine on the body.
> 1001IN - SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE)
Loosen left engine mount -1- from front-axle carrier and engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

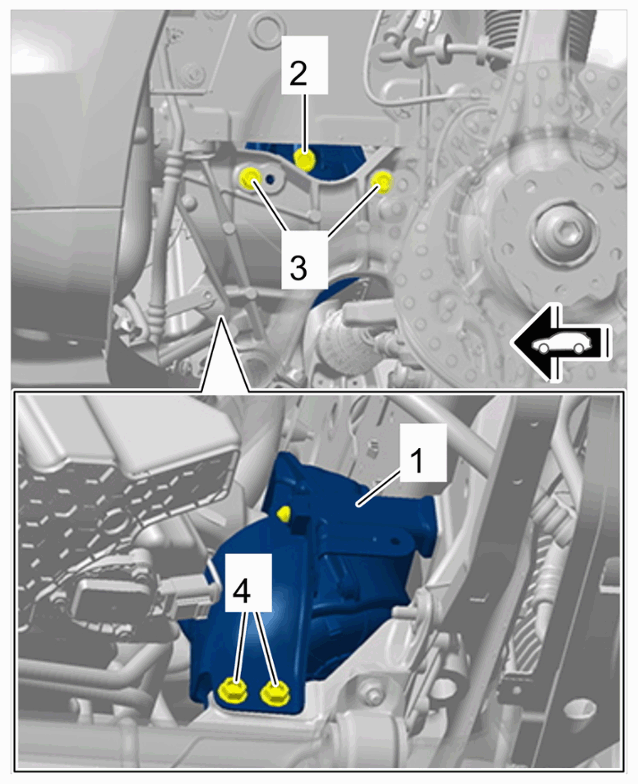

Left engine mounting
1. 3.1 Unscrew screws -2 to 4- .
Loosen engine from right engine mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

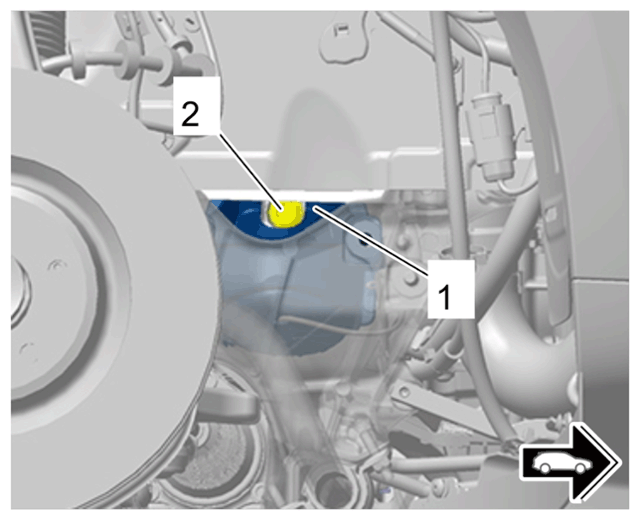

Right engine mount
1. 4.1 Unscrew screw securing engine to engine mount -2- .
Drain engine oil.
> 170117 - DRAINING AND FILLING ENGINE OIL (R4)
Remove front anti-roll bar.
> 407719 - REMOVING AND INSTALLING FRONT ANTI-ROLL BAR
Remove power-steering gear.
> 489019 - REMOVING AND INSTALLING POWER-STEERING GEAR
Remove ATF cooling line (rear section).
> 386219 - REMOVING AND INSTALLING LINE FOR ATF COOLING (R4)
